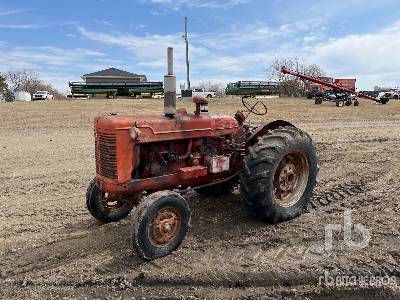

ITM 285 2WD Tractor
Units
Dimensions
Dimensions
A
Overall Length
13.16in
D
Wheelbase
7.52ft in
B
Overall Width
6.76ft in
Height With Out Rops
5.52ft in
Height With Rops
8.3ft in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2450
Engine Model
A4-248
Gross Power
75hp
Pto Power
63.4hp
Power Measured @
2000rpm
Max Torque
205.1lb ft
Torque Measured @
1300rpm
Displacement
247.8cu in
Operational
Operating Weight
6199.4lb
Fuel Capacity
23.8gal
Cooling System Fluid Capacity
3.8gal
Hydraulic System Fluid Capacity
11.4gal
Engine Oil Capacity
2.2gal
3 Point Hitch Lift Capacity @ 24 Inches
4909.7lb
Tire Size Front - 2wd / 4wd
7.5-16
Rear Tires Size 2wd/4wd
18.4/15-30
Operating Voltage
12V
Fuel Usage @ 75% Load, Full Rpm
4.1gal/hour
Alternator Supplied Amperage
45amps
Transmission
Number Of Forward Gears
8
Number Of Reverse Gears
2
Hydraulic System
Relief Valve Setting
3379.4psi
Pump Flow Capacity
4.5gal/min
