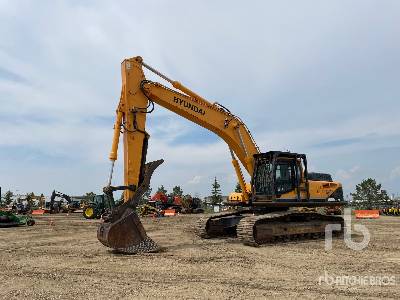

Hyundai R380LC-9 Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
36.88ft in
Shipping Height Of Unit
12.18ft in
Max Cutting Height
34.75ft in
Max Loading Height
24.18ft in
Max Reach Along Ground
34.42ft in
Max Vertical Wall Digging Depth
19.46ft in
Max Digging Depth
22.38ft in
Boom/Stick Option (Hex) 1
Boom 21\'4\" (6500mm) / Stick 8\'2\" (2500mm)
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
36.49ft in
Max Cutting Height
34.68ft in
Shipping Height Of Unit
11.32ft in
Max Loading Height
24.32ft in
Max Reach Along Ground
36.23ft in
Max Vertical Wall Digging Depth
20.77ft in
Max Digging Depth
24.68ft in
Boom/Stick Option (Hex) 2
Boom 21\'4\" (6500 mm) / Stick 10\'6\" (3200mm)
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
36.62ft in
Max Cutting Height
35.44ft in
Max Loading Height
25.07ft in
Shipping Height Of Unit
12.73ft in
Max Reach Along Ground
38.29ft in
Max Vertical Wall Digging Depth
23.1ft in
Max Digging Depth
26.97ft in
Boom/Stick Option (Hex) 3
Boom 21\'4\" (6500mm) / Stick 12\'1\" (3900mm)
Boom/Stick Option (Hex) 4
Shipping Length Of Unit
36.46ft in
Shipping Height Of Unit
14.11ft in
Max Cutting Height
37.28ft in
Max Loading Height
26.78ft in
Max Reach Along Ground
39.97ft in
Max Digging Depth
28.29ft in
Max Vertical Wall Dig Depth
24.74ft in
Boom/Stick Option (Hex) 4
Boom 21\'4\" (6500mm) / Stick 14\"1\" (4300mm)
Boom/Stick Option (Hex) 5
Shipping Length Of Unit
35.7ft in
Shipping Height Of Unit
12.34ft in
Max Cutting Height
33.86ft in
Max Loading Height
23.36ft in
Max Reach Along Ground
33.14ft in
Max Digging Depth
21.17ft in
Max Vertical Wall Dig Depth
18.02ft in
Boom/Stick Option (Hex) 5
Boom 20\'2\" (6150mm) / Stick 8\'2\" (2500mm)
Boom/Stick Option (Hex) 6
Max Cutting Height
43.8ft in
Max Loading Height
33.31ft in
Shipping Length Of Unit
42.89ft in
Max Reach Along Ground
49.61ft in
Shipping Height Of Unit
16.11ft in
Max Digging Depth
36.85ft in
Boom/Stick Option (Hex) 6
Boom 28\'3\" (8600mm) / Stick 16\'9\" (5100mm)
Max Vertical Wall Dig Depth
33.01ft in
Dimensions
Ground Clearance
1.81ft in
Height To Top Of Cab
10.42ft in
Width To Outside Of Tracks
11.29ft in
Length Of Track On Ground
14.24ft in
Tail Swing Radius
11.21ft in
Removal Counterweight Clearance
4.24ft in
Undercarriage
Track Gauge
8.99ft in
Shoe Size
27.56in
Max Travel Speed
2.99mph
Number Of Track Rollers Per Side
9
Number Of Shoes Per Side
51
Number Of Carrier Rollers Per Side
2
Ground Pressure
8.39psi
Specifications
Engine
Engine Make
2347
Engine Model
QSL
Net Power
271hp
Gross Power
296hp
Power Measured @
1850rpm
Max Torque
1070lb ft
Aspiration
Turbocharged
Displacement
540cu in
Torque Measured @
1400rpm
Operational
Operating Weight
85208.7lb
Fuel Capacity
145.3gal
Cooling System Fluid Capacity
11.9gal
Hydraulic System Fluid Capacity
108.4gal
Operating Voltage
24V
Engine Oil Capacity
8.9gal
Swing Drive Fluid Capacity
2.2gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
4765psi
Hydraulic Pump Flow Capacity
576gal/min
Swing Mechanism
Swing Speed
9.3rpm
Buckets
Reference Bucket Capacity
2.2yd3
Minimum Bucket Capacity
2yd3
Maximum Bucket Capacity
2.8yd3
