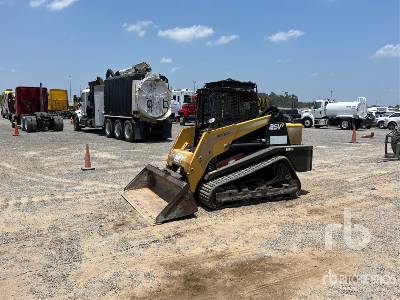

ASV PT50 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
5ft in
C
Height To Top Of Cab
6.42ft in
E
Ground Clearance
12in
G
Clearance At Max Lift And Dump
9.59ft in
Length With Out Bucket
8.34ft in
Length With Bucket
10.67ft in
Undercarriage
D
Length Of Track On Ground
4.92ft in
Ground Contact Area
1770in2
Ground Pressure
3.5psi
Number Of Track Rollers Per Side
12
Width Of Track
15in
Specifications
Engine
Engine Make
2351
Engine Model
404C-22
Gross Power
50hp
Power Measured @
2800rpm
Peak Torque
105lb ft
Displacement
134cu in
Aspiration
Natural
Operational
Operating Weight
6200lb
Cooling System Fluid Capacity
2gal
Fuel Capacity
15gal
Engine Oil Capacity
11.2gal
Hydraulic System Fluid Capacity
8gal
Operating Voltage
12V
Alternator Supplied Amperage
55amps
Max Speed - High Range
8mph
Loader
Operating Load
1900lb
Tipping Angle
3800degrees
Bucket Capacity
0.3yd3
Hydraulic
Pump Flow
16.3gal/min
Relief Valve Pressure
3000psi
