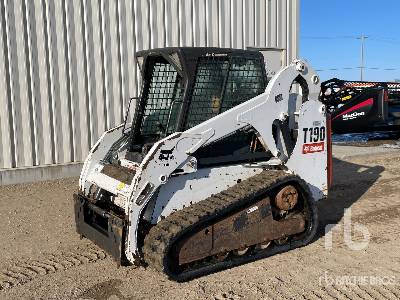

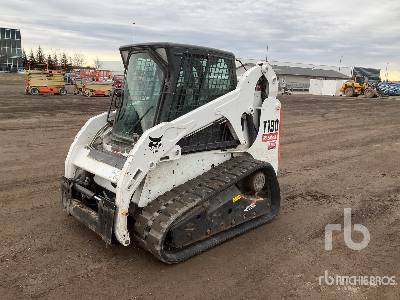

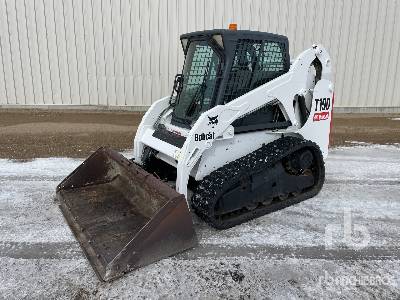

Bobcat T190 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
5.5ft in
C
Height To Top Of Cab
6.36ft in
G
Clearance At Max Lift And Dump
7.58ft in
H
Reach At Max Lift And Dump
2.58ft in
Length With Bucket
10.86ft in
Length With Out Bucket
8.48ft in
Turning Radius From Center - Inc Bucket
78.78in
Undercarriage
D
Length Of Track On Ground
4.6ft in
I
Track Gauge
4.45ft in
Number Of Track Rollers Per Side
4
Width Of Track
12.6in
Ground Pressure
4.91psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2334
Engine Model
V2003T
Gross Power
61hp
Power Measured @
2800rpm
Displacement
122.1cu in
Aspiration
turbocharged
Operational
Operating Weight
7612lb
Fuel Capacity
28gal
Max Speed - High Range
7.1mph
Loader
Operating Load
1900lb
Tipping Angle
6851degrees
Bucket Capacity
0.6yd3
Hydraulic
Pump Flow
16.3gal/min
Relief Valve Pressure
3300psi
