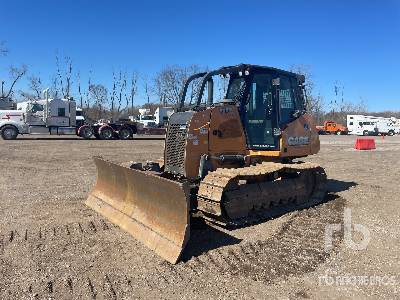

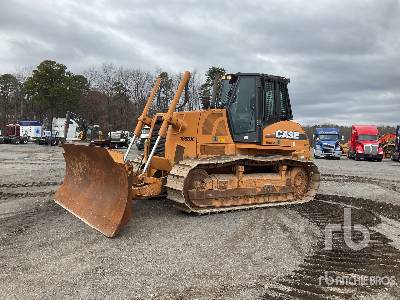

Case 1150M Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
7.84ft in
C
Height To Top Of Cab
116.38in
D
Length Of Track On Ground
8.42ft in
E
Ground Clearance
1.06ft in
Cast Reach
15.99in
Height To Top Of Rops
116.38in
Blade Depth Below Ground
20.4in
Blade Lift Above Ground
36.46in
Undercarriage
G
Track Gauge
0.01ft in
Number Of Shoes Per Side
43
Number Of Upper Rollers
2
Width Of Shoes
30in
Number Of Bottom Rollers Per Side
7
Specifications
Electrical System
Alternator
120 amp
Batteries
2
Battery
12-volt low-maintenance
Engine
Air Intake
Cross-Flow
Fuel
2 Diesel
Emission Tier Level
Tier4
Fuel Injection
Common rail
Fan
26.0 in,(660mm)Diameter
Pump Operating Angles -Side-To-Side
35degrees
Pump Operating Angles - Fore And Aft
45degrees
Transmission Type
Hydrostatic
Fuel Tank
85.1gal
Number Of Cylinders
6
Engine Model
FPT F4HFE613F
Gross Power
138hp
Cooling System
Liquid
Net Power
127.4hp
Power Measured @
2000rpm
Displacement
408.9cu in
Diesel Exhaust Fluid (Def) Tank Capacity
13.8gal
Drive Train
Max Drawbar Pull
47996.8lb
Parking Brakes
Heavy-duty, spring-applied,
Final Drive
2 helical gear
Capacities
Engine Oil With Filter
4.4gal
Operational
Long Track
31133.7lb
Wide Track
32174.3lb
Low Ground Pressure
32637.3lb
Winch
2447.2lb
Center Rock Guard
295.5lb
Sweeps
138.9lb
Operating Weight
32637.3lb
Performance
Pump Flow
34.9gal/min
Transmission
Max Speed - Forward
5.8mph
Max Speed - Reverse
5.8mph
Weights
Ripper Weight
2376.6lb
Cab
560lb
Counterweight
948lb
Hydraulic
Lift Cylinder(S)
2
Lift Cylinder-Bore Diameter
4.3in
Lift Cylinder - Rod Diameter
2in
Lift Cylinder - Stroke
19.3in
Blade
Blade Width
11.1ft in
Blade Capacity
41.6yd3
Blade Height
44.1in
Blade Type
PAT
Hydraulic System
Pump Type
Variable Displacement Piston
Standard Blade
Blade Angle (Both Directions)
25degrees
