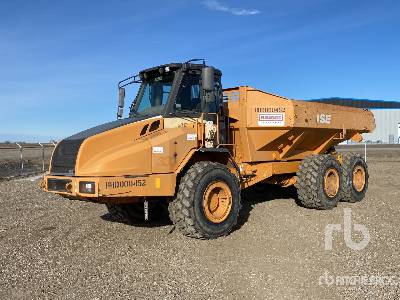

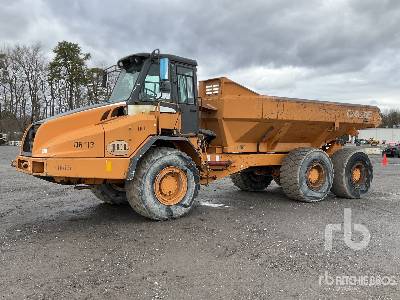

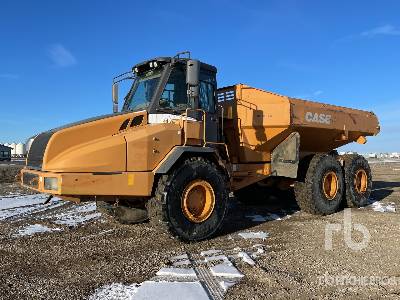

Case 335B Articulated Dump Truck
Units
Dimensions
Dimensions
A
Overall Length
35.37ft in
B
Overall Width
10.47ft in
C
Overall Height
12.08ft in
D
Wheelbase
20.58ft in
E
Ground Clearance
1.78ft in
F
Dump Height
22.54ft in
G
Dump Ground Clearance
3.09ft in
Dump
H
Dump Angle
68degrees
Lower Time
13sec
Rated Payload
69445lb
Capacity - Struck
19.61yd3
Raise Time
11sec
Capacity - Heaped
26.2yd3
Specifications
Engine
Number Of Cylinders
6
Engine Make
2239
Engine Model
Family IV 13 liter Tier III certified
Gross Power
410hp
Net Power
380hp
Power Measured @
2100rpm
Max Torque
1364.5lb ft
Torque Measured @
1000rpm
Aspiration
Turbocharged with Aftercooler
Displacement
787cu in
Operational
Fuel Capacity
119gal
Hydraulic System Fluid Capacity
79.3gal
Engine Oil Capacity
9.2gal
Transmission Fluid Capacity
9.4gal
Operating Voltage
24V
Alternator Supplied Amperage
90amps
Tire Size
Tubeless 26.5 R25
Transmission
Transmission Type
powershift
Number Of Forward Gears
6
Number Of Reverse Gears
3
Max Speed
29.8mph
Weights
Front Axle - Empty
31085lb
Rear Axle - Empty
15873lb
Total Empty
62832lb
Total Loaded
132277lb
