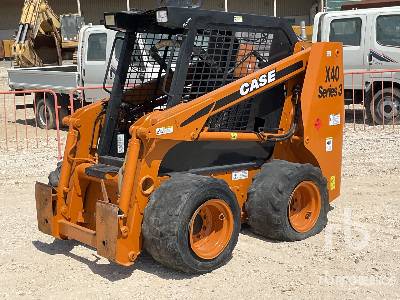

Case 40XT Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
10.27ft in
B
Width Over Tires
4.93ft in
E
Ground Clearance
8in
C
Height To Top Of Cab
6.3ft in
D
Wheelbase
3.45ft in
F
Length W/O Bucket
8.34ft in
G
Clearance At Max Lift And Dump
7.45ft in
H
Reach At Max Lift And Dump
23.63in
Turning Radius From Center - Machine Rear
57.49in
Turning Radius From Center - Inc Bucket
73.23in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2239
Engine Model
4-390
Gross Power
60hp
Net Power
56hp
Power Measured @
2000rpm
Aspiration
Natural
Displacement
239cu in
Operational
Operational Weight
5716lb
Fuel Capacity
22gal
Cooling System Fluid Capacity
4.4gal
Engine Oil Fluid Capacity
2.8gal
Max Speed
6.8mph
Hydraulic System Fluid Capacity
13.3gal
Chain Box Fluid Capacity - Each Side
1.6gal
Tire Size
10.00x16.5
Operating Voltage
12V
Alternator Supplied Amperage
65amps
Loader
Breakout Force
3788lb
Operating Load Rating
1500lb
Tipping Angle
3000degrees
Bucket Capacity
0.6yd3
Hydraulic
Pump Type
gear pump
Pump Flow Capacity
19.1gal/min
Relief Valve Pressure
3000psi
