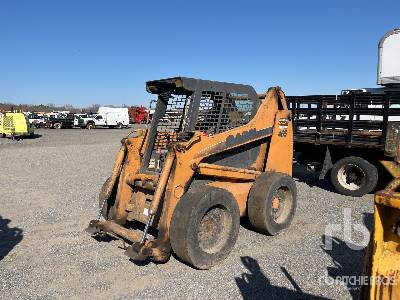

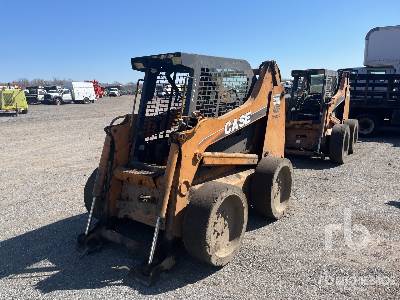

Case 465 Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
11.92ft in
B
Width Over Tires
5.38ft in
E
Ground Clearance
9.1in
C
Height To Top Of Cab
6.67ft in
D
Wheelbase
4.21ft in
F
Length W/O Bucket
9.23ft in
G
Clearance At Max Lift And Dump
7.92ft in
H
Reach At Max Lift And Dump
36.8in
Turning Radius From Center - Machine Rear
65.1in
Turning Radius From Center - Inc Bucket
86.3in
Specifications
Engine
Number Of Cylinders
4
Engine Make
2239
Engine Model
Family III 445T/M2, Tier II certified
Gross Power
88hp
Net Power
82hp
Power Measured @
2300rpm
Aspiration
turbocharged
Displacement
274cu in
Operational
Operational Weight
8910lb
Fuel Capacity
20.2gal
Cooling System Fluid Capacity
4.5gal
Engine Oil Fluid Capacity
3.2gal
Max Speed
12.3mph
Hydraulic System Fluid Capacity
17.5gal
Chain Box Fluid Capacity - Each Side
2gal
Tire Size
12.00 x 16.5
Operating Voltage
95V
Alternator Supplied Amperage
12amps
Loader
Breakout Force
6175lb
Operating Load Rating
3000lb
Tipping Angle
6000degrees
Bucket Capacity
0.8yd3
Hydraulic
Pump Type
Gear pump
Pump Flow Capacity
22.1gal/min
Relief Valve Pressure
3000psi
