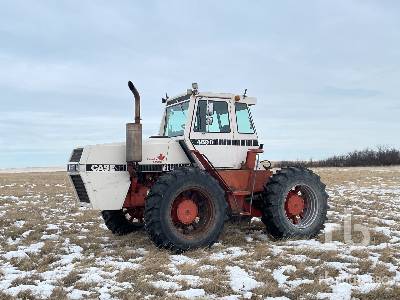

Case 4690 4WD Tractor
Units
Dimensions
Dimensions
D
Wheelbase
101.97in
Specifications
Engine
Number Of Cylinders
6
Engine Make
Case
Gross Power
261hp
Pto Power
219hp
Power Measured @
2200rpm
Displacement
506.5cu in
Bore
4.7in
Stroke
5in
Aspiration
Turbocharged
Operational
Operating Weight
22310lb
Fuel Capacity
128gal
Hydraulic System Fluid Capacity
15.5gal
Cooling System Fluid Capacity
12gal
Front Tire Size
18.4-34
3 Point Hitch Type
III
3 Point Hitch Lift Capacity @ 24 Inches
12750lb
Rear Tire Size
18.4-34
Transmission
Transmission Type
Three-speed powershift
Number Of Forward Gears
12
Number Of Reverse Gears
4
Max Speed - Forward
18.3mph
Max Speed - Reverse
18.3mph
Hydraulic System
Hydraulic System Type
Closed center
Pump Flow Capacity
31gal/min
Number Of Remote Control Valves
2
