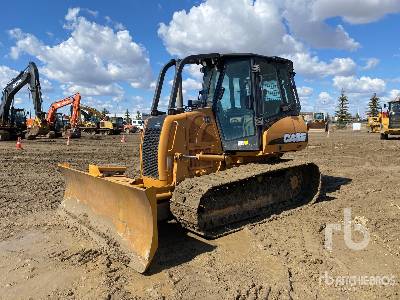

Case 650L WT Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
13.62ft in
B
Width Over Tracks
7.92ft in
C
Height To Top Of Cab
8.66ft in
D
Length Of Track On Ground
6.96ft in
E
Ground Clearance
1.21ft in
Undercarriage
G
Track Gauge
5.68ft in
H
Standard Shoe Size
27in
Number Of Shoes Per Side
39
Ground Pressure
3.9psi
Number Of Carrier Rollers Per Side
1
Ground Contact Area
4552in2
Number Of Track Rollers Per Side
6
Specifications
Engine
Number Of Cylinders
4
Engine Make
2239
Engine Model
445TA/EHA
Gross Power
80.5hp
Net Power
74hp
Power Measured @
2000rpm
Max Torque
295lb ft
Displacement
274cu in
Torque Measured @
1400rpm
Operational
Operating Weight
17550lb
Fuel Capacity
41gal
Cooling System Fluid Capacity
5.7gal
Engine Oil Capacity
3.3gal
Hydraulic Fluid Capacity
16.5gal
Final Drives Fluid Capacity
3.8gal
Operating Voltage
12V
Alternator Supplied Amperage
65amps
Transmission
Transmission Type
Hydrostatic
Number Of Forward Gears
1
Number Of Reverse Gears
1
Max Speed - Forward
5.5mph
Max Speed - Reverse
5.5mph
Hydraulic System
Relief Valve Pressure
3025psi
Pump Flow Capacity
20.3gal/min
Standard Blade
Width
10ft in
Height
33.2in
Capacity
2.2yd3
Blade Angle (Both Directions)
25degrees
Cutting Depth
21in
