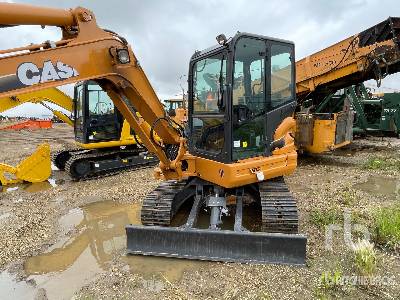

Case CX31B ZTS Mini Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
14.41ft in
I
Max Cutting Height
15.58ft in
C
Shipping Height Of Unit
8.44ft in
J
Max Loading Height
11ft in
K
Max Reach Along Ground
16.18ft in
L
Max Vertical Wall Digging Depth
7.08ft in
M
Max Digging Depth
9.22ft in
Boom/Stick Option (Hex) 1
Std Dipper 1.18M
Boom/Stick Option (Hex) 2
I
Max Cutting Height
16.28ft in
A
Shipping Length Of Unit
14.41ft in
J
Max Loading Height
11.65ft in
C
Shipping Height Of Unit
8.44ft in
K
Max Reach Along Ground
17.07ft in
L
Max Vertical Wall Digging Depth
7.98ft in
M
Max Digging Depth
10.18ft in
Boom/Stick Option (Hex) 2
Long Dipper 1.47M
Dimensions
B
Width To Outside Of Tracks
5.09ft in
D
Length Of Track On Ground
5.08ft in
E
Ground Clearance
1.09ft in
G
Height To Top Of Cab
8.42ft in
H
Tail Swing Radius
2.58ft in
Removal Counterweight Clearance
1.87ft in
Undercarriage
N
Shoe Size
11.82in
F
Track Gauge
4.11ft in
Number Of Carrier Rollers Per Side
1
Max Travel Speed
2.8mph
Drawbar Pull
8655lb
Ground Pressure
4.35psi
Number Of Track Rollers Per Side
4
Specifications
Engine
Number Of Cylinders
4
Engine Make
2348
Engine Model
3TNV88-BPYB
Net Power
30hp
Power Measured @
2400rpm
Displacement
100cu in
Max Torque
72.6lb ft
Torque Measured @
1440rpm
Operational
Operating Weight
6679lb
Fuel Capacity
10gal
Cooling System Fluid Capacity
1.2gal
Hydraulic System Fluid Capacity
12.7gal
Engine Oil Capacity
1.8gal
Operating Voltage
12V
Alternator Supplied Amperage
24amps
Hydraulic System Relief Valve Pressure
3335.9psi
Hydraulic Pump Flow Capacity
25.7gal/min
Swing Mechanism
Swing Speed
9rpm
Buckets
Reference Bucket Capacity
0.1yd3
Minimum Bucket Capacity
0.1yd3
Maximum Bucket Capacity
0.2yd3
