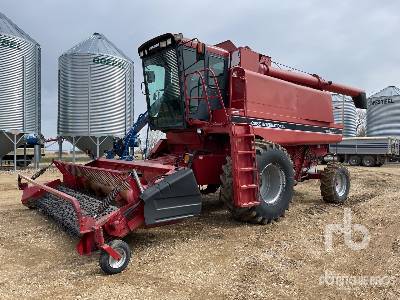

Case IH case ih Combine
Units
Dimensions
Dimensions
A
Overall Length
23ft in
B
Width Over Tires
30ft in
D
Wheelbase
147.9ft in
Height To Top Of Isomount Cab
28.8ft in
Specifications
Engine
Engine Make
2408
Engine Model
FPT
Power
450hp
Power Boost Power
510hp
Power Measured @
60rpm
Displacement
12.9cu in
Operational
Operating Weight W/O Attachment
37500lb
Fuel Capacity
264gal
Transmission Type
4-SPEED HYDROSTATIC DRIVE
Number Of Gears
4
Feeding
Conveyor Width
10.4in
Conveyor Length
11.9in
Conveyor Speed
2rpm
Threshing
Rotor Diameter
30in
Rotor Speed - Low
220rpm
Rotor Speed - High
730rpm
Concave Area
2in2
Beater Grate Area
2in2
Separating
Separator Type
LONGITUDINALLY MOUNTED ROTOR
Separator Length
2in
Separating Area
2in2
Discharge Grate Area
2in2
Cleaning System
Total Cleaning Area
10075in2
Cleaning Fan Speed - Low
300rpm
Cleaning Fan Speed - High
1150rpm
Self Leveling?
Standard
Grain Handling
Grain Tank Capacity
350bu
Unloading Auger Length
28ft in
