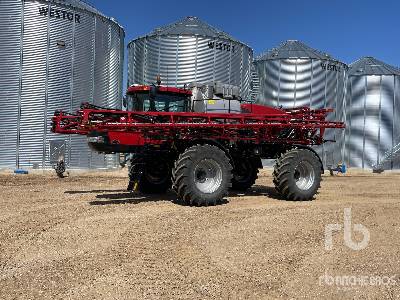

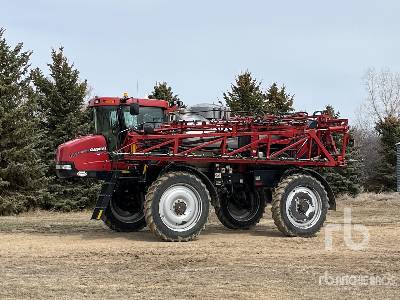

Case IH Patriot 4440 Sprayer
Units
Dimensions
Boom
F
Min Boom Width
60ft in
G
Max Boom Width
120ft in
A
Overall Length
29.86ft in
Nozzle Spacing
20 (50.8) off-center or 20-30 (50.8-76.2) with 30 (76.2) on-center
Overall Height
12.14ft in
Overall Width-Wheels Extended
14.77ft in
Overall Width-Wheels Retracted
11.49ft in
Weight With Intermediate Boom
27399.05lb
Weight With Shortest Boom
27399.05lb
Boom Location
Rear
Weight With Widest Boom
28900.4lb
Boom Sections
5 or 6 with 90, 6 with 100, or 36 with AIM Command FLEX
Boom Width Intermediate
100ft in
Specifications
Engine
Emission Tier Level
Tier 4 B or Final
Engine Position Front Or Rear
Rear
Number Of Cylinders
6
Engine Make
Case IH FPT
Engine Model
Cursor 8.7
Rated Power
335hp
Displacement
531cu in
Peak Torque
1143lb ft
Peak Rated Power
374hp
Alternator
200amps
Drive Train
Speed Ranges
Infinitely variable
Travel Speeds - 1st
30mph
Parking Brakes
Spring-applied hydraulic released wet disc, all wheels
Wheel Drive
Full-time 4WD
Drive System Description
Hydrostatic
Primary Service Brake
Drive system dynamic braking
Secondary Service Brake
Dry disks on front wheels
Capacities
Hydraulic Oil Reservoir
29gal
Rinse Tank
140gal
Hand Wash Tank
4.5gal
Dry Material Box Option In Place Of Tank
No
Foam Marker Tank
55gal
Fuel Tank
140gal
Diesel Exhaust Fluid (Def) Tank
21gal
Hydraulic System
Chemical Eductor
Optional, stainless steel
Solution System
Solution System Tank
1200gal
Solution Fill Connection-Left Side
3in
Solution Fill Connection- Front Fill
Optional
Solution Pump
Centrifugal-hydraulic motor driven
Tank Material
Stainless steel
Chassis
Suspension
Trailing-link with coil spring & shock standard, Active susp. optional
Steering System
2WS, Hydraulic
Wheel Track Spacing
157in
Total Suspension Travel
11in
Wheel Base
160in
Turning Radius
24.7ft in
