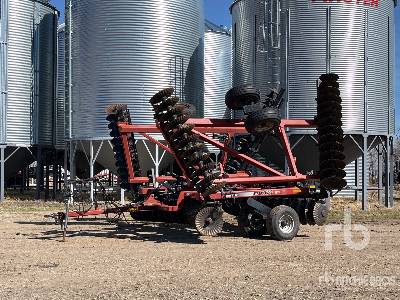

Case IH RMX340 34ft Disc
Units
Dimensions
Dimensions
A
Overall Length
23.25in
B
Transport Width
17.83ft in
C
Transport Height
13.75ft in
Operating Speed
6mph
Pto Power Required Per Width Ft.
6.9hp
Wing Tires
11L x 15 8PR
Working Width Spacing #1 Min
34.08ft in
Main Frame Tires
12.5L x 15 6-bolt 10PR
Working Width Spacing #2 Min
33.58ft in
Max Weight
15045lb
Min Weight
7982lb
Specifications
Disc System
Spacing #1
7.5in
Spacing #2
9in
Depth Control
Single Point Hydraulic
Weight Per Blade Spacing #1
120lb
Weight Per Blade Spacing #2
150lb
Max Operating Depth
4in
Gangs
Gang Mounts
Rigid or C-Spring Cushion
Gang Arbor Bolts
1.5in
Gang Spool Type
Nodular Iron Spool
Gang Spool Diameter
4.5in
Front Disk Angle
18degrees
Rear Disk Angle
18degrees
Bearing Type
Regreasable Triple Lip, Heavy Steel Bearing, Self-aligning Flange Style
Scrapers
4 in. Heavy-duty Spring Steel
