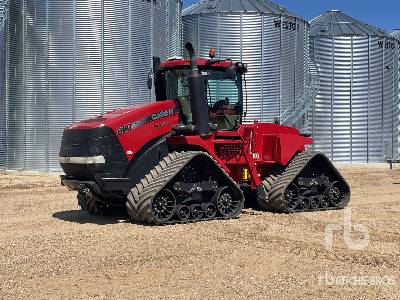

Case IH STEIGER 600 QUADTRAC 4WD Tractor
Units
Dimensions
Dimensions
D
Wheelbase
12.84ft in
Specifications
Drawbar
Description
Category 4, Swinging
Electrical System
System
12V
Alternator
200amps
Engine
Fuel Injection
Direct
Emissions Level
Tier 4A (Interim)
Number Of Cylinders
6
Def Tank Capacity
64gal
Advertised Rated Engine Power
599.5hp
Maximum Engine Power
659.8hp
Power Boost
69.1hp
Pto Horsepower
473.4hp
Pto Speed
1000rpm
Pto Operational Type
Independent
Block Design
Wet liners
Fuel System Control
Electronic
Steering Configuration
Frame Articulated
Drive Wheels / Tracks
4 Tracks
Engine Make
Case IH FPT
Engine Model
Steiger 600 Quadtrac
Rated Engine Speed
2100rpm
Fuel Tank Capacity
470gal
Displacement
787.3cu in
Bore
5.4in
Stroke
6in
Aspiration
Turbocharged, Air-Water & Air-Air Aftercooled
Fan Drive Type
Hydraulic fan drive
Fuel System
High Pressure Common Rail
Transmission
Manufacturers Description
16F x 2R Full Powershift
Transmission Type
Full powershift
Maximum Speed Forward
24.9mph
Number Of Forward Gears
16
Number Of Reverse Gears
2
Weights
Weight Without Ballast
53803.9lb
Weight With Maximum Ballast
55999.7lb
Tires
Track Widths
30-36 in, 762-914 mm
Hydraulic System
Optional Pump Flow
57-113 gal/min, 216-428 L/min
Hydraulic System Type
Pressure Flow Compensated
Main Pump Type
Single pump - standard, TwinFlow - optional
Axles
Axle Output End
Flange
Hydraulic System
Implement Pump Flow
42.1gal/min
Axles
Final Drive
Inboard Compound Planetary
Hydraulic System
Number Of Remote Control Valves
4 - standard, up to 8 total
3-Point Hitch
Category
Category 4N
Lift Capacity @ 24”
20000.4lb
Draft Sensing
Lower Link
Brakes
Service Brake
Wet disc
