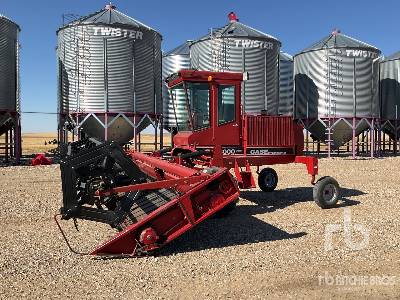

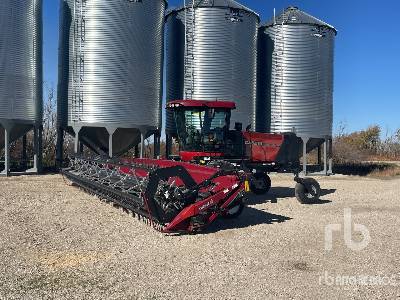

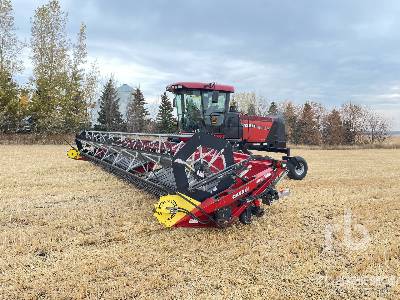

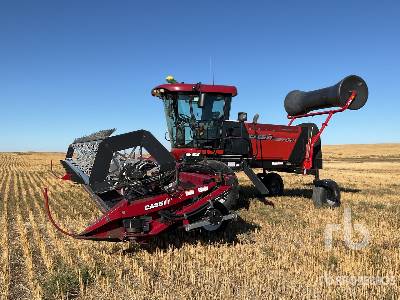

Case IH WD 2104 Swather
Units
Dimensions
Dimensions
A
Length W/ Header
23.59ft in
C
Height To Top Of Cab
11.24ft in
D
Wheelbase
144.06in
F
Length W/O Header
16.59ft in
Track Width
154.8 in, (3932 mm)Drive
Crop Clearance
42.52in
Track Width (Engine End)
90, 105 in,(2286, 2667 or 3048 mm)
Weight, W/O Header
12,370 to 13,000 ib(5613 to 5897 kg)
Specifications
Speeds
Maximum Road Speed
19mph
Engine
Emission Tier Level
Tier 4B / Final
Radiator Core Type
Rotary Wand and duct
Fuel Tank
120gal
Number Of Cylinders
6
Max. Horsepower
220hp
Def Tank Capacity
19gal
Engine Make
Case IH FPT
Power
210hp
Displacement
408.9cu in
Aspiration
Turbo, with charge air cooler
Alternator
150amps
Transmission
Transmission Type
Hydro static, 2-speed Standard
Tires
Tire Size Engine
14Lx16.1 8PR or 16.5Lx16.1 8 PR
Cab Suspension
Standard
Drive Tires
580/70 R26 R3 or 600/65 R28 R1W
