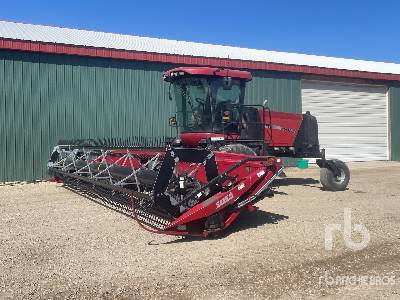

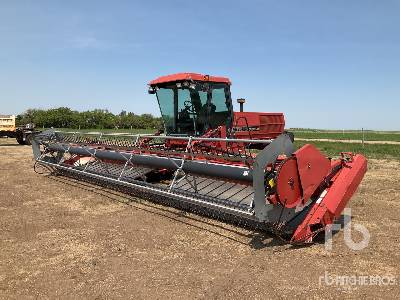

Case IH WD2303 Swather
Units
Dimensions
Dimensions
A
Length W/ Header
22.17ft in
C
Height To Top Of Cab
11.26ft in
D
Wheelbase
11.44in
E
Ground Clearance
39.41in
F
Length W/O Header
16.59ft in
Rear Wheel Tread Width - Max
120in
Rear Wheel Tread Width - Min
90in
Front Wheel Tread Width
130.24in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2408
Power
225hp
Power Measured @
2100rpm
Aspiration
turbocharged with intercooler
Displacement
411cu in
Operational
Operating Weight W/O Attachment
12300lb
Fuel Capacity
120gal
Front Tire Size
18.4Rx26
Rear Tire Size
14Lx16.1, 8PR
Operating Voltage
24V
Alternator Supplied Amperage
150amps
Transmission
Transmission Type
Dual speed hydrostatic
Number Of Forward Gears
2
Number Of Reverse Gears
2
Max Speed
16.5mph
Final Drive Type
planetary hubs
