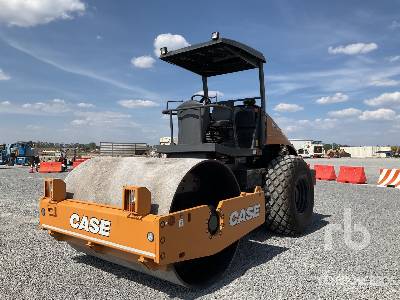

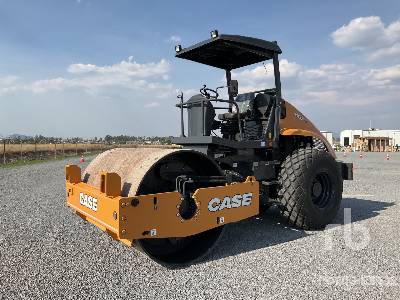

Case SV216D Vibratory Smooth Drum Roller
Units
Dimensions
Dimensions
A
Overall Length
241.74in
B
Overall Width
7.42ft in
D
Wheelbase
120.08in
E
Ground Clearance
17.33in
Overall Height
10.01ft in
Specifications
Electrical System
Voltage
24 VV
Battery
2 X90 Amp
Alternator
45amps
Engine
Emissions Certification
Tier 4 Final
Gross Engine Horsepower
2200
Number Of Cylinders
4
Engine Make
Deutz
Engine Model
TCD4.1 L4
Gross Power
154hp
Max Torque
449.2lb ft
Displacement
250.2cu in
Diesel Exhaust Fluid (Def) Tank Capacity
5.9gal
Drive Train
Emergency Brake
Multi-disc
Piston Type Wheel Drive Pump
1
Parking Brakes
Multi-disc
Wheel Drive
1
Grade Ability Without Traction Assist
62degrees
Differential / Lock System
Drive motor interlock
Drive
Hydrostatic
Capacities
Vibration System
408.9cu in
Hydraulic Oil Tank
24.4gal
Fuel Tank
92.5gal
Transmission
0.7gal
Engine Oil
3.6gal
Engine Coolant
9gal
Operational
Smooth Drum Operating Weight With Cab
31636.4lb
Smooth Drum Max. Weight With Cab
40785.6lb
Smooth Drum Drum Weight
11351.7lb
Smooth Drum_Static Linear Load
107.6lb
Pad Foot Drum_Operating Weight With Out Cab
31438lb
Padfoot Drum_ Max. Weight With Cab
40785.6lb
Drum
Smooth Drum
5ft in
Padfoot Drum
64.6in
Frame Extensions
43.4in
Drum Thickness
1.6in
Drum Width
83.9in
Blade
Blade Length
22473.8ft in
Blade Width
8.1ft in
