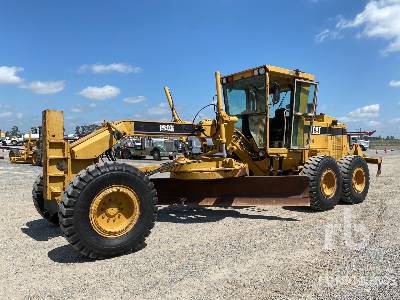

Caterpillar 160H ES Motor Grader
Units
Dimensions
Dimensions
A
Overall Length
28.22ft in
B
Width Over Tires
8.14ft in
D
Wheelbase
19.99ft in
H
Blade Base
8.27ft in
Height To Top Of Isomount Cab
10.24ft in
Specifications
Engine
Net Power Gear 4-6
180hp
Engine Make
2236
Engine Model
3306 DITA
Max Power
200hp
Net Power Gears 7-8
200hp
Displacement
637.7cu in
Operational
Hydraulic System Fluid Capacity
21.2gal
Std Operation Weight - Total
34361.3lb
Fuel Capacity
90.1gal
Tire Size
14-24 12PR (G-2)
Operating Voltage
24V
Alternator Supplied Amperage
50amps
Steering
Articulation Angle
20degrees
Turning Radius
24.3ft in
Transmission
Number Of Gears - Forward
8
Number Of Gears - Reverse
6
Max Speed - Forward
25.3mph
Max Speed - Reverse
20mph
Front Axle
Wheel Lean
18degrees
Oscillation - Total
32degrees
Moldboard
Moldboard Width
23.9ft in
Moldboard Height
27.1in
Moldboard Thickness
1in
Hydraulic System
Pump Type
Axial Piston
Pump Flow
54.5gal/min
Relief Valve Pressure
3500psi
Circle
Max Lift Above Ground
17.8in
