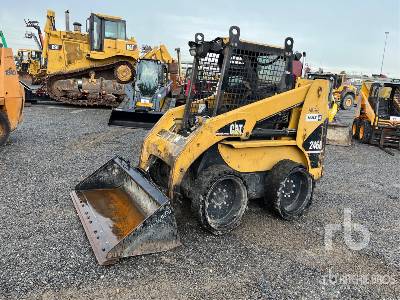

Caterpillar 246B Skid Steer Loader
Units
Dimensions
Dimensions
A
Length With Bucket
11.54ft in
B
Width Over Tires
5.5ft in
E
Ground Clearance
9in
C
Height To Top Of Cab
6.87ft in
D
Wheelbase
3.73ft in
F
Length W/O Bucket
9.19ft in
G
Clearance At Max Lift And Dump
7.87ft in
H
Reach At Max Lift And Dump
21.3in
Maximum Overall Height
156in
Maximum Reach - With Arms Parallel
53in
Bucket Pin Height - Carry Position
10in
Bucket Pin Height - Maximum Lift
10.17ft in
Bumper Overhang - Rear Axle
41in
Clearance At Maximum Lift And Dump
94in
Height - Top Of Cab
6.84ft in
Length - With Bucket On Ground
138in
Length - Without Bucket
110in
Turn Radius From Center - Rear
64in
Turning Radius From Center - Inc Bucket
82.56in
Turning Radius From Center - Machine Rear
63.9in
Vehicle Width Over Tires
66in
Wheel Base
3.75ft in
Reach - Maximum Lift/Dump
21in
Turn Radius From Center - Bucket
83in
Turn Radius From Center - Coupler
52in
Operating Specifications
Rated Operating Capacity With Optional Counterweight
2100lb
Breakout Force - Lift Cylinder
4656.16lb
Rated Operating Capacity
2000lb
Tipping Load
4188lb
Breakout Force - Tilt Cylinder
5484lb
Specifications
Engine
Engine Make
2236
Engine Model
3044C DIT
Gross Power
82hp
Net Power
79.2hp
Aspiration
turbocharged
Bore
3.7in
Stroke
4.7in
Gross Power - Sae J1995
82hp
Engine Model
Cat 3044C DIT
Engine Power - Iso 14396
80hp
Net Power - Eec 80/1269
78hp
Net Power - Iso 9249 Eec
78hp
Net Power - Sae 1349
78hp
Net Flywheel Power
78hp
Operational
Operational Weight
7140.8lb
Fuel Capacity
23.8gal
Cooling System Fluid Capacity
2.7gal
Engine Oil Fluid Capacity
2.7gal
Hydraulic System Fluid Capacity
13.8gal
Max Speed
7.8mph
Chain Box Fluid Capacity - Each Side
1.9gal
Tire Size
12x16.5 10PR
Operating Voltage
12V
Alternator Supplied Amperage
90amps
Power Train
Travel Speed Forward
7.7mph
Travel Speed Reverse
7.7mph
Travel Speed Reverse - 2-Speed Option
11.8mph
Travel Speed Forward - 2-Speed Option
11.8mph
Loader
Breakout Force
5482.9lb
Operating Load Rating
1999.6lb
Tipping Angle
3999.2degrees
Weights
Operating Weight
7142lb
Hydraulic
Pump Flow Capacity
22gal/min
Relief Valve Pressure
3335.9psi
Hydraulic System
Hydraulic Power
42.8hp
Loader Hydraulic Pressure
3335 psi
Loader Hydraulic Flow
22 gal/min
Hydraulic Flow
Standard flow
Service Refill Capacities
Cooling System
2.6gal
Fuel Tank
23.8gal
Hydraulic Tank
9.2gal
Engine Crankcase
2.6gal
Hydraulic System
13.7gal
Chain Box - Each Side
1.8gal
Cab
Rops
SAE J1040 MAY94 and ISO3471:1994
Fops
SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I
Fops Level Ii
SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional)
