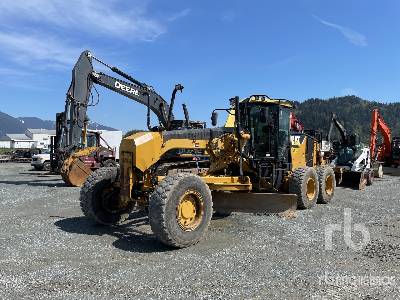

Caterpillar 24M Motor Grader
Dimensions
Dimensions
Overall Length
46.57ft in
Width Over Tires
14.04ft in
Wheelbase
33.72ft in
Rear Ground Clearance
1.66ft in
Tandem Axle Wheelbase
7.5ft in
Front Ground Clearance
2.82ft in
Blade Base
13.28ft in
Height To Top Of Isomount Cab
14.28ft in
Length - Between Tandem Axles
90in
Length - Counterweight To Ripper
633.9in
Length - Front Axle To Mid Tandem
404.6in
Length - Front Axle To Moldboard
159.4in
Length - Front Tire To Rear Of Machine
558.8in
Height - Top Of Cylinders
151.4in
Height - Top Of Cab
14.61ft in
Height - Front Axle Center
33.8in
Height - Exhaust Stack
170.2in
Width - Outside Front Tires
168.5in
Width - Outside Rear Tires
166.3in
Width - Tire Center Lines
135.81in
Ground Clearance - Rear Axle
23.9in
Specifications
Ripper
Pry-Out Force
41052lb
Ripping Depth - Maximum
17.9in
Ripper Shank Holders
7
Penetration Force
29985lb
Shank Holder Spacing - Minimum
23.4in
Shank Holder Spacing - Maximum
23.8in
Engine
Number Of Cylinders
6
Net Power Gear 4-6
533hp
Engine Make
2236
Engine Model
C18 ACERT
Net Power Gear 1-2
533hp
Power Measured @
2000rpm
Net Power Gear 5-6
533hp
Max Power
533hp
Net Power Gears 7-8
533hp
Net Torque Gears 7-8
1762lb ft
Displacement
1104.5cu in
Bore
5.7in
Stroke
7.2in
Engine Model
Cat C18 ACERT
Derating Altitude
5500ft in
Maximum Torque
1762lb ft
Base Power (1st Gear) - Net
533hp
Speed At Rated Power
1800 RPM
Frame
Circle - Diameter
103.6in
Drawbar - Height
8.5in
Front Axle - Height To Center
32.2in
Circle - Blade Beam Thickness
6.3in
Front Axle - Total Oscillation Per Side
32 degrees
Drawbar - Thickness
0.6in
Drawbar - Width
8.9in
Front-Top/Bottom Plate - Width
20.2in
Front-Top/Bottom Plate - Thickness
2in
Front Axle - Wheel Lean - Left/Right
18 degrees
Engine
Base Power (All Gears) - Net
533hp
Standard - Fan Speed - Maximum
1300 RPM
Standard - Fan Speed - Minimum
60 RPM
Standard - Ambient Capability
122degrees
Frame
Front-Side Plates - Width
16.3in
Front-Side Plates - Thickness
1in
Engine
Base Power (All Gears) - Net - Metric
540hp
Frame
Height - Front Axle Center
33.8in
Operational
Std Operation Weight - Front Axle
41360lb
Std Operation Weight - Rear Axle
96332lb
Hydraulic System Fluid Capacity
70gal
Std Operation Weight - Total
137692lb
Max Operation Weight - Front Axle
43931lb
Max Operation Weight - Rear Axle
101877lb
Max Operation Weight - Total
145808lb
Fuel Capacity
350gal
Cooling System Fluid Capacity
24gal
Rear Diff/Final Drive Fluid Capacity
49gal
Circle Gearbox Fluid Capacity
2.3gal
Tandem Case Fluid Capacity (Each)
85gal
Tire Size
29.5-29 28PR
Power Train
Brakes - Parking
Spring applied, hydraulically released
Brakes - Service
Oil-actuated, oil-disc
Transmission
Automatic, electronic power shift
Forward/Reverse Gears
6 Forward/3 Reverse
Brakes - Secondary
Oil-actuated, oil-disc
Brakes - Service - Surface Area
15733in2
Steering
Articulation Angle
25degrees
Turning Radius
40.7ft in
Transmission
Transmission Type
automatic, electronic power shift
Number Of Gears - Forward
6
Number Of Gears - Reverse
3
Max Speed - Forward
26.7mph
Max Speed - Reverse
25.6mph
Front Axle
Wheel Lean
18degrees
Oscillation - Total
32degrees
Ground Clearance
2.9ft in
Weights
Gross Vehicle Weight - Typically Equipped - Rear Axle
102051lb
Gross Vehicle Weight - Typically Equipped - Front Axle
43100lb
Gross Vehicle Weight - Typically Equipped - Total
145151lb
Operating Weight - Typically Equipped
145151lb
Gross Vehicle Weight - Base - Total
138287lb
Gross Vehicle Weight - Typically Equipped
145151lb
Gross Vehicle Weight - Maximum - Total
152857lb
Gross Vehicle Weight - Base - Rear Axle
96110lb
Gross Vehicle Weight - Base - Front Axle
42177lb
Gross Vehicle Weight - Maximum - Front Axle
45856lb
Gross Vehicle Weight - Maximum - Rear Axle
107001lb
Hydraulic System
Standby Pressure
450 psi
Maximum System Pressure
3500 psi
Moldboard
Moldboard Width
24ft in
Moldboard Height
42in
Moldboard Thickness
2in
Max Depth Of Cut
25.9in
Side Shift Left
34.3in
Side Shift Right
49in
Hydraulic System
Pump Type
Variable piston
Pump Flow
145gal/min
Relief Valve Pressure
3500psi
Circuit Type
Electro-hydraulic load sensing, closed center
Pump Output
145 gal/min
Moldboard
Blade Width
24ft in
Arc Radius
21.7in
Throat Clearance
6.4in
Thickness
2in
Cutting Edge Width
13in
Cutting Edge Thickness
1.1in
End Bit - Width
8in
End Bit - Thickness
1in
Moldboard - Height
42in
Moldboard - Thickness
2in
Blade Pull - Base
86500lb
Blade Pull - Maximum
95940lb
Down Pressure - Base
69583lb
Down Pressure - Maximum
75654lb
Width
24ft in
Height
40in
Circle
Diameter
103.6in
Shift Left
31.7in
Shift Right
17.2in
Max Reach Outside Tires - Left
126.9in
Max Reach Outside Tires - Right
127.7in
Max Lift Above Ground
25in
Blade Tip Angle - Front
40degrees
Blade Tip Angle - Rear
degrees
Operating Specifications
Top Speed - Forward
27mph
Top Speed - Reverse
25.8mph
Turning Radius - Outside Front Tires
40.7ft in
Steering Range - Left/Right
47.5 degrees
Articulation Angle - Left/Right
25 degrees
Forward - 6th
26.7mph
Forward - 5th
17.2mph
Forward - 4th
9.3mph
Forward - 3rd
6mph
Forward - 2nd
3.5mph
Forward - 1st
2.3mph
Reverse - 3rd
25.6mph
Reverse - 2nd
8.9mph
Reverse - 1st
3.4mph
Forward - 1f
2.3mph
Forward - 2f
3.6mph
Forward - 3f
6mph
Forward - 4f
9.4mph
Forward - 5f
17.4mph
Forward - 6f
27mph
Reverse - 1r
3.4mph
Reverse - 2r
9mph
Reverse - 3r
25.8mph
Standards
Brakes
ISO 3450
Rops/Fops
ISO 3471/ISO 3449
Sound
ISO 6394/ISO 6395
Steering
ISO 5010
Service Refill
Cooling System
24gal
Hydraulic System - Total
70gal
Engine Oil
16gal
Hydraulic System - Tank
36gal
Tandem Housing - Each
85gal
Circle Drive Housing
2gal
Front Wheel Spindle Bearing Housing
1gal
Fuel Capacity
350gal
Transmission - Differential - Final Drives
49gal
Differential - Final Drives
49gal
Circle Drive Housing - Each
2gal
Transmission Oil
23gal
Blade Range
Circle Centershift - Right
210.2in
Circle Centershift - Left
209.9in
Moldboard Sideshift - Right
193in
Moldboard Sideshift - Left
178.3in
Blade Tip Range - Forward
40 degrees
Blade Tip Range - Backward
0 degrees
Maximum Shoulder Reach Outside Of Tires - Right
127.1in
Maximum Shoulder Reach Outside Of Tires - Left
126.9in
Maximum Lift Above Ground
25in
Maximum Depth Of Cut
25.9in
Maximum Blade Position Angle
35 degrees
Tandems
Height
41in
Width
13.9in
Sidewall Thickness - Inner
1in
Sidewall Thickness - Outer
1.2in
Drive Chain Pitch
3in
Wheel Axle Spacing
90in
Tandem Oscillation - Front Up
20 degrees
Tandem Oscillation - Front Down
20 degrees
Engine - Tier 2
Base Power (All Gears) - Net
533hp
Base Power (All Gears) - Net - Metric
540hp
Engine Model
Cat C18 ACERT
Displacement
1104.5cu in
Bore
5.7in
Stroke
7.2in
Maximum Torque - Net
2001lb ft
Torque Rise - Net
30 %
Speed At Rated Power
1800rpm
Number Of Cylinders
6
Derating Altitude
10000ft in
Standard - Fan Speed - Maximum
1325rpm
Standard - Fan Speed - Minimum
60rpm
Standard - Ambient Capability
122degrees
Engine - U.S. Epa Tier 4 Interim Certified
Base Power (All Gears) - Net
533hp
Base Power (All Gears) - Net - Metric
540hp
Engine Model
Cat C18 ACERT
Displacement
1104.5cu in
Bore
5.7in
Stroke
7.2in
Speed At Rated Power
1800rpm
Number Of Cylinders
6
Derating Altitude
9655ft in
Standard - Fan Speed - Maximum
1325rpm
Standard - Fan Speed - Minimum
60rpm
Standard - Ambient Capability
122degrees
Maximum Torque - Net
2001lb ft
