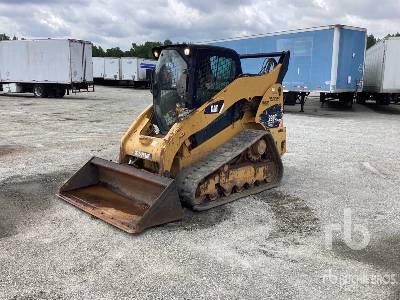

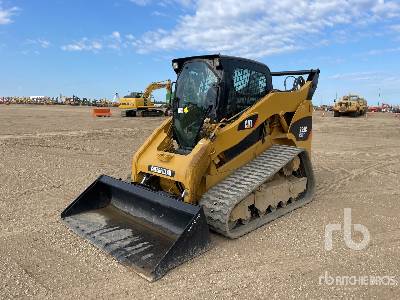

Caterpillar 299C Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
6.5ft in
C
Height To Top Of Cab
6.95ft in
E
Ground Clearance
9.1in
G
Clearance At Max Lift And Dump
8.18ft in
H
Reach At Max Lift And Dump
2.51ft in
Height - Top Of Cab
6.95ft in
Length - Track On Ground
69.6in
Length - With Bucket On Ground
150.4in
Length - Without Bucket
122.1in
Length With Bucket
12.54ft in
Bucket Pin Height - Maximum Lift
10.79ft in
Bucket Pin Reach - Maximum Lift
14.7in
Clearance At Maximum Lift And Dump
98.1in
Departure Angle
38 degrees
Turning Radius From Center - Inc Bucket
91.11in
Turning Radius From Center - Machine Rear
69.89in
Vehicle Width
78in
Bucket Pin Height - Carry Position
7.7in
Length With Out Bucket
10.18ft in
Maximum Dump Angle
51 degrees
Maximum Overall Height
162.31in
Maximum Reach - With Arms Parallel
49.9in
Overall Length - Track
89.4in
Rack Back Angle - Maximum Height
83 degrees
Reach At Maximum Lift/Dump
30in
Turn Radius From Center - Bucket
91.1in
Turn Radius From Center - Coupler
57.9in
Turn Radius From Center - Rear
69.91in
Undercarriage
D
Length Of Track On Ground
5.8ft in
Ground Contact Area
2504in2
Ground Pressure
4.3psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
C3.4 DIT
Gross Power
94hp
Net Power
90hp
Power Measured @
2500rpm
Displacement
201cu in
Bore
3.7in
Stroke
4.7in
Aspiration
Turbocharged
Gross Power - Sae J1995
94hp
Engine Model
Cat C3.4T
Net Power - Sae 1349
90hp
Operational
Operating Weight
10730lb
Cooling System Fluid Capacity
3.7gal
Engine Oil Capacity
2.7gal
Fuel Capacity
25.9gal
Hydraulic System Fluid Capacity
15.1gal
Operating Voltage
12V
Alternator Supplied Amperage
90amps
Max Speed - Low Range
5.1mph
Max Speed - High Range
8.5mph
Power Train
Travel Speed Forward - 2-Speed
8.5mph
Travel Speed Reverse - 2-Speed
8.5mph
Travel Speed Forward
5mph
Travel Speed Reverse
5mph
Loader
Breakout Force
7308lb
Operating Load
4150lb
Tipping Angle
8338degrees
Bucket Capacity
0.6yd3
Weights
Operating Weight
10730lb
Hydraulic
Pump Flow
22.2gal/min
Relief Valve Pressure
3335psi
Hydraulic System
Hydraulic Flow (1)
Standard
Hydraulic Power
42.8hp
Maximum Loader Hydraulic Flow
33 gal/min
Maximum Loader Hydraulic Pressure
4061 psi
Loader Hydraulic Pressure
3335 psi
Loader Hydraulic Flow
22 gal/min
Hydraulic Flow (2)
High Flow XPS
Operating Specifications
Rated Operating Capacities - 50% Tipping Load
4150lb
Rated Operating Capacities - 35% Tipping Load
2905lb
Ground Contact Area
2504in2
Ground Pressure
4.3 psi
Rated Operating Capacity With Optional Counterweight
4418lb
Tipping Load
8338lb
Breakout Force - Tilt Cylinder
7308lb
Service Refill Capacities
Cooling System
3.7gal
Fuel Tank
26gal
Hydraulic Tank
11gal
Engine Crankcase
2.6gal
Hydraulic System
15gal
Cab
Rops
SAE J1040 MAY94, ISO 3471:1994
Fops
SAE J1043 SEPT87, ISO 3449:1992 Level I
Fops Level Ii
SAE J231 JAN81, ISO 3449:1992 Level II
