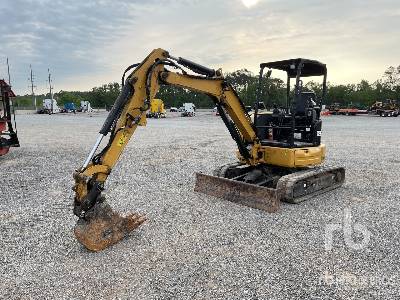

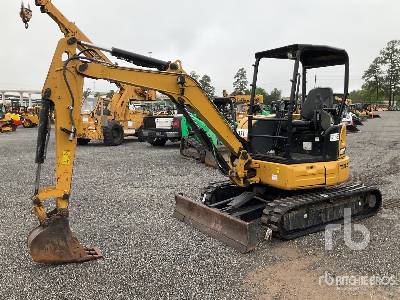

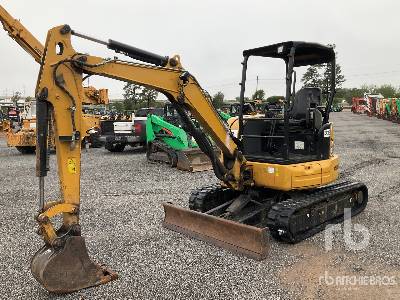

Caterpillar 301.6C Mini Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
12.08ft in
Max Cutting Height
11ft in
Shipping Height Of Unit
7.17ft in
Max Loading Height
7.75ft in
Max Reach Along Ground
11.83ft in
Max Vertical Wall Digging Depth
5.33ft in
Max Digging Depth
6.83ft in
Boom/Stick Option (Hex) 1
Standard stick
Boom/Stick Option (Hex) 2
Max Cutting Height
11.33ft in
Shipping Length Of Unit
12.08ft in
Max Loading Height
8.17ft in
Shipping Height Of Unit
7.17ft in
Max Reach Along Ground
12.5ft in
Max Vertical Wall Digging Depth
5.92ft in
Max Digging Depth
5.92ft in
Boom/Stick Option (Hex) 2
Long stick
Dimensions
Width To Outside Of Tracks
3.2ft in
Length Of Track On Ground
5.17ft in
Height To Top Of Cab
7.17ft in
Tail Swing Radius
3.58ft in
Track Gauge
2.46ft in
Maximum Dump Height - Long Stick
8.1ft in
Maximum Dump Height - Standard Stick
7.7ft in
Maximum Horizontal Reach - Long Stick
12.47ft in
Maximum Horizontal Reach - Standard Stick
11.84ft in
Maximum Reach - Ground Level - Standard Stick
11.8ft in
Maximum Vertical Dig Depth - Long Stick
5.9ft in
Maximum Vertical Dig Depth - Standard Stick
5.3ft in
Removal Counterweight Clearance
1.42ft in
Shipping Height
7.19ft in
Shipping Length
12.1ft in
Length - Center Of Rollers
11.84 ft
Swing Radius - Rear
3.58ft in
Maximum Cutting Height - Long Stick
11.35ft in
Maximum Cutting Height - Standard Stick
10.99ft in
Maximum Digging Depth - Long Stick
7.61ft in
Maximum Digging Depth - Standard Stick
6.8ft in
Transport Width
3.22ft in
Width - Over Track
3.22ft in
Height - Over Cab
7.19ft in
Track Shoe Width
0.75ft in
Undercarriage
Shoe Size
9in
Track Gauge
2.5ft in
Max Travel Speed
2.8mph
Specifications
Electrical System
Electrical System Type
12-volt system, 500 CCA, 35 amp/h maintenance free battery
Swing System
Machine Swing Speed
10.5rpm
Boom Swing - Left - Without Stop
90degrees
Boom Swing - Left - With Stop
54degrees
Boom Swing - Right
50degrees
Engine
Number Of Cylinders
3
Engine Make
2251
Engine Model
L3E
Gross Power
19hp
Net Power
18.1hp
Power Measured @
2400rpm
Displacement
58.1cu in
Engine Model
Mitsubishi L3E NA Diesel
Operational
Operating Weight
3792lb
Fuel Capacity
5.8gal
Cooling System Fluid Capacity
1.1gal
Hydraulic System Fluid Capacity
9.8gal
Engine Oil Capacity
1.1gal
Operating Voltage
12V
Alternator Supplied Amperage
40amps
Hydraulic System Relief Valve Pressure
2988psi
Hydraulic Pump Flow Capacity
10.5gal/min
Swing Mechanism
Swing Speed
10.5rpm
Weights
Operating Weight
3549lb
Operating Weight - With Cab
3792lb
Buckets
Reference Bucket Capacity
0.1yd3
Minimum Bucket Capacity
0.1yd3
Maximum Bucket Capacity
0.1yd3
Blade
Height
8.9in
Width
3.3ft in
Lift Height
7.1in
Dig Depth
9.1in
Hydraulic System
Operating Pressure - Swing
2524 psi
Operating Pressure - Equipment
2988 psi
Operating Pressure - Travel
2988 psi
Digging Force - Stick - Standard
2225.7lb
Digging Force - Stick - Long
1978.4lb
Digging Force - Bucket
3462lb
Auxiliary Circuits - Primary - At 174 Bar
9 gal/min
Auxiliary Circuits - Secondary - At 174 Bar
3.85 gal/min
Pump - Piston (Tandem)
5.25 gal/min
Pump - Gear (Dual) (Swing, Pilot)
3.85 gal/min
Service Refill Capacities
Cooling System
1.1gal
Fuel Tank
5.8gal
Hydraulic Tank
6.3gal
Hydraulic System
9.8gal
Engine Oil
1.1gal
Engine Dimensions
Bore
3in
Stroke
2.8in
Displacement
58.1cu in
Sound Levels
Cab
83 dB(A)
Canopy
83 dB(A)
Msc Comments
Msc Spec Date
8/05
Travel System
Maximum Traction Force - High Speed
1574lb
Maximum Traction Force - Low Speed
3372lb
Gradeability - Maximum - High
30degrees
Travel Speed - High
2.8mph
Travel Speed - Low
1.3mph
