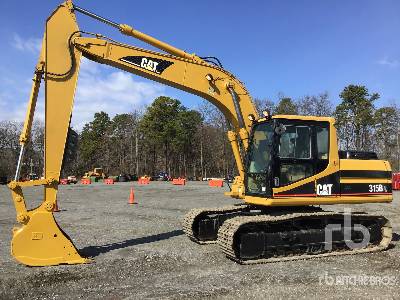

Caterpillar 315B Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Max Cutting Height
27.89ft in
Max Loading Height
19.46ft in
Max Reach Along Ground
26.38ft in
Max Vertical Wall Digging Depth
14.44ft in
Max Digging Depth
17.43ft in
Boom/Stick Option (Hex) 1
boom w/ stick 1850mm
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
27.79ft in
Max Cutting Height
28.66ft in
Shipping Height Of Unit
9.13ft in
Max Loading Height
20.18ft in
Max Reach Along Ground
27.63ft in
Max Vertical Wall Digging Depth
16.18ft in
Max Digging Depth
18.72ft in
Boom/Stick Option (Hex) 2
Boom / Stick 7\'5\" (2250mm)
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
27.89ft in
Max Cutting Height
29.24ft in
Max Loading Height
20.74ft in
Shipping Height Of Unit
9.39ft in
Max Reach Along Ground
28.68ft in
Max Vertical Wall Digging Depth
17.51ft in
Max Digging Depth
19.87ft in
Boom/Stick Option (Hex) 3
Boom / Stick 8\'6\" (2600mm)
Boom/Stick Option (Hex) 4
Shipping Length Of Unit
27.96ft in
Shipping Height Of Unit
9.81ft in
Max Cutting Height
29.43ft in
Max Loading Height
21.04ft in
Max Reach Along Ground
29.99ft in
Max Digging Depth
21.51ft in
Boom/Stick Option (Hex) 4
Boom / Stick 10\'2\" (3100mm)
Max Vertical Wall Dig Depth
18.28ft in
Dimensions
Ground Clearance
1.51ft in
Height To Top Of Cab
9.45ft in
Width To Outside Of Tracks
8.17ft in
Length Of Track On Ground
9.45ft in
Tail Swing Radius
8.04ft in
Removal Counterweight Clearance
3.45ft in
Undercarriage
Track Gauge
6.53ft in
Shoe Size
19.69in
Drawbar Pull
29480lb
Max Travel Speed
3.42mph
Ground Pressure
7.02psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
3046T
Net Power
99hp
Gross Power
102hp
Power Measured @
2100rpm
Displacement
305cu in
Aspiration
Turbocharged
Bore
3.7in
Stroke
4.7in
Engine Model
Cat 3046T Diesel Engine
Flywheel Power
99hp
Eec 80/1269
99hp
Sae J1349
99hp
Iso 9249
99hp
Operational
Operating Weight
34800lb
Fuel Capacity
74gal
Cooling System Fluid Capacity
5.1gal
Hydraulic System Fluid Capacity
49.7gal
Operating Voltage
24V
Engine Oil Capacity
3.5gal
Swing Drive Fluid Capacity
0.8gal
Alternator Supplied Amperage
50amps
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
69.8gal/min
Swing Mechanism
Swing Speed
10.1rpm
Swing Torque
28400lb ft
Weights
Operating Weight
36400lb
Buckets
Reference Bucket Capacity
0.7yd3
Minimum Bucket Capacity
0.5yd3
Maximum Bucket Capacity
1.1yd3
Hydraulic System
Pilot System - Maximum Flow
4.5 gal/min
Pilot System - Maximum Pressure
570 psi
Maximum Pressure - Travel
4980 psi
Maximum Pressure - Swing
3340 psi
Maximum Pressure - Implements
4980 psi
Main Implement System - Maximum Flow (2x)
35 gal/min
Boom Cylinder - Bore
4.3in
Boom Cylinder - Stroke
47in
Stick Cylinder - Bore
4.7in
Stick Cylinder - Stroke
52.4in
Bucket Cylinder - Bore
3.9in
Bucket Cylinder - Stroke
41in
Service Refill Capacities
Cooling System
4.5gal
Fuel Tank
74gal
Final Drive - Each
0.9gal
Hydraulic Tank
27.7gal
Hydraulic System - Including Tank
49.6gal
Engine Oil
3.5gal
Swing Drive - Each
0.8gal
Drive
Maximum Drawbar Pull
30340lb
Travel Speed
3.4mph
