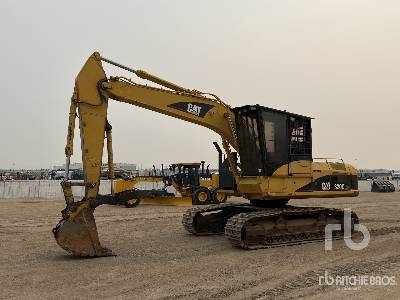

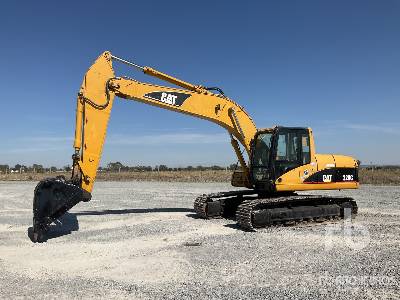

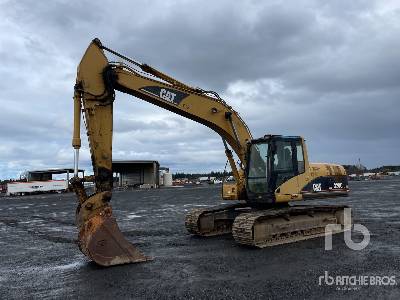

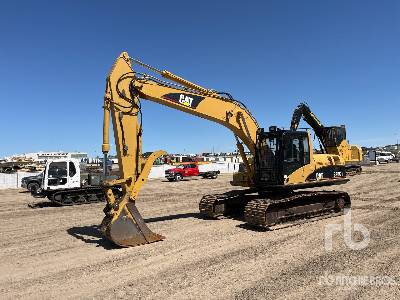

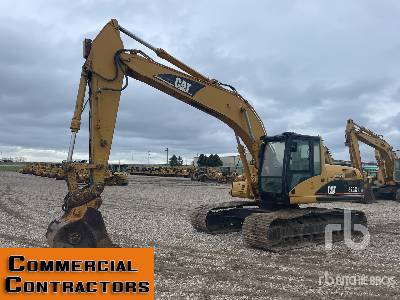

Caterpillar 320C LN Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
32.95ft in
C
Shipping Height Of Unit
9.88ft in
I
Max Cutting Height
35.6ft in
J
Max Loading Height
25.23ft in
K
Max Reach Along Ground
30.68ft in
L
Max Vertical Wall Digging Depth
10.77ft in
M
Max Digging Depth
13.65ft in
Boom/Stick Option (Hex) 1
boom w/ stick R1.9C 1900mm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
31.86ft in
I
Max Cutting Height
36.91ft in
C
Shipping Height Of Unit
9.88ft in
J
Max Loading Height
27.83ft in
K
Max Reach Along Ground
32.22ft in
L
Max Vertical Wall Digging Depth
12.34ft in
M
Max Digging Depth
15.1ft in
Boom/Stick Option (Hex) 2
boom w/ stick R2.5B 2500mm
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
31.8ft in
I
Max Cutting Height
38.13ft in
J
Max Loading Height
29.2ft in
C
Shipping Height Of Unit
9.88ft in
K
Max Reach Along Ground
33.6ft in
L
Max Vertical Wall Digging Depth
13.65ft in
M
Max Digging Depth
16.47ft in
Boom/Stick Option (Hex) 3
boom w/ stick R2.9B 2900mm
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
30.75ft in
C
Shipping Height Of Unit
13.32ft in
I
Max Cutting Height
40.65ft in
J
Max Loading Height
31.63ft in
K
Max Reach Along Ground
36.55ft in
M
Max Digging Depth
19.56ft in
Boom/Stick Option (Hex) 4
boom w/ stick R3.9B 3900mm
Max Vertical Wall Dig Depth
16.61ft in
Dimensions
E
Ground Clearance
1.51ft in
G
Height To Top Of Cab
9.68ft in
B
Width To Outside Of Tracks
8.17ft in
D
Length Of Track On Ground
11.98ft in
H
Tail Swing Radius
9.09ft in
Undercarriage
F
Track Gauge
6.53ft in
N
Shoe Size
19.69in
Drawbar Pull
44062.56lb
Max Travel Speed
3.42mph
Specifications
Engine
Engine Make
2236
Engine Model
ATAAC engine 3066
Gross Power
138hp
Operational
Operating Weight
48038.8lb
Buckets
Reference Bucket Capacity
1.1yd3
Minimum Bucket Capacity
0.7yd3
Maximum Bucket Capacity
1.8yd3
