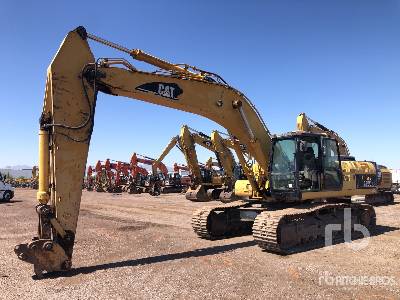

Caterpillar 330C L Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
36.75ft in
C
Shipping Height Of Unit
12.25ft in
J
Max Loading Height
25.08ft in
K
Max Reach Along Ground
38.16ft in
L
Max Vertical Wall Digging Depth
24.08ft in
M
Max Digging Depth
26.63ft in
Boom/Stick Option (Hex) 1
Boom 21\'4\" / Stick 12\'10\"
Dimensions
E
Ground Clearance
1.6ft in
B
Width To Outside Of Tracks
11.25ft in
D
Length Of Track On Ground
13.25ft in
H
Tail Swing Radius
11.5ft in
Undercarriage
F
Track Gauge
8.5ft in
N
Shoe Size
34in
Max Travel Speed
3.1mph
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C9
Net Power
244hp
Power Measured @
1800rpm
Displacement
537cu in
Bore
4.5in
Stroke
5.9in
Net Power - Iso 9249
247hp
Net Power - Sae J1349
244hp
Engine Model
CAT C9
Net Power - Eec 80/1269
247hp
Net Flywheel Power
247hp
Operational
Operating Weight
77400lb
Fuel Capacity
163gal
Hydraulic System Fluid Capacity
46gal
Hydraulic System Relief Valve Pressure
4974psi
Hydraulic Pump Flow Capacity
148gal/min
Swing Mechanism
Swing Speed
10rpm
Weights
Operating Weight - Standard Undercarriage
77382.2lb
Buckets
Reference Bucket Capacity
2.3yd3
Minimum Bucket Capacity
1yd3
Maximum Bucket Capacity
3.8yd3
Hydraulic System
Pilot System - Maximum Flow
10 gal/min
Pilot System - Maximum Pressure
597 psi
Maximum Pressure - Travel
4974 psi
Maximum Pressure - Swing
4046 psi
Main Implement System - Maximum Flow (2x)
74 gal/min
Boom Cylinder - Bore
6in
Boom Cylinder - Stroke
57in
Maximum Pressure - Equipment
4974 psi
D Family Bucket Cylinder - Bore
6in
D Family Bucket Cylinder - Stroke
46in
E Family Bucket Cylinder - Bore
6.3in
E Family Bucket Cylinder - Stroke
53in
Service Refill Capacities
Cooling System
10gal
Final Drive - Each
4gal
Hydraulic System - Including Tank
108gal
Engine Oil
9.4gal
Fuel Tank Capacity
163gal
Swing Drive
5gal
Standards
Brakes
SAE J1026 APR90
Cab/Fogs
SAE J1356 FEB88 ISO 10262
Sound Performance
Performance
ANSI/SAE J1166
Track
Standard With Long Undercarriage - Triple Grouser
34in
Optional - Heavy Duty - Triple Grouser
34in
Optional - Triple Grouser
30in
Drive
Maximum Travel Speed
3.1mph
Maximum Drawbar Pull
66094lb
