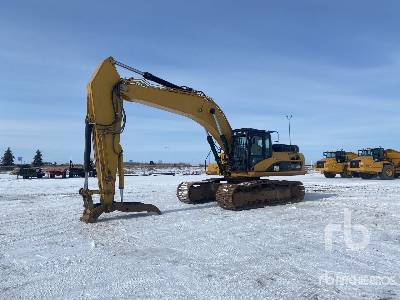

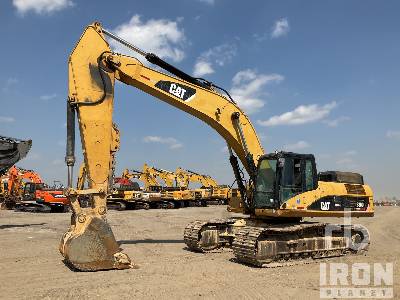

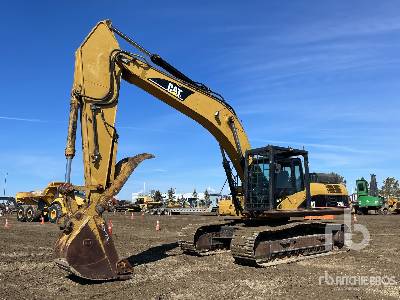

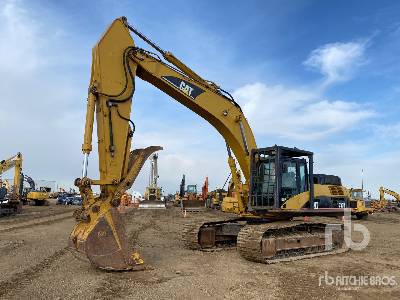

Caterpillar 330D L Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
36.75ft in
Shipping Height Of Unit
11.92ft in
Max Cutting Height
35.25ft in
Max Loading Height
24.75ft in
Max Reach Along Ground
38.42ft in
Max Vertical Wall Digging Depth
23.5ft in
Max Digging Depth
26.83ft in
Boom/Stick Option (Hex) 1
Boom 21\'4\" (6500mm) / Stick 12\'10\" (3900mm) -Reach
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
36.58ft in
Max Cutting Height
33.67ft in
Shipping Height Of Unit
11ft in
Max Loading Height
23.33ft in
Max Reach Along Ground
36.08ft in
Max Vertical Wall Digging Depth
20.08ft in
Max Digging Depth
24.58ft in
Boom/Stick Option (Hex) 2
Boom 21\'4\" (6500mm) / Stick 10\'6\" (3200mm) -Reach
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
35.83ft in
Max Cutting Height
32.92ft in
Max Loading Height
21.75ft in
Shipping Height Of Unit
11.75ft in
Max Reach Along Ground
33.58ft in
Max Vertical Wall Digging Depth
14.5ft in
Max Digging Depth
21.75ft in
Boom/Stick Option (Hex) 3
Boom 20\'3\" (6180mm) / Stick 8\'4\" (2550mm) -Mass
Dimensions
Ground Clearance
1.5ft in
Height To Top Of Cab
10.33ft in
Width To Outside Of Tracks
11.13ft in
Tail Swing Radius
11.5ft in
Removal Counterweight Clearance
4ft in
Transport Width
11.13ft in
Undercarriage
Track Gauge
8.5ft in
Shoe Size
32in
Max Travel Speed
3.1mph
Number Of Carrier Rollers Per Side
2
Number Of Shoes Per Side
49
Number Of Track Rollers Per Side
9
Drawbar Pull
67443lb
Specifications
Engine
Engine Make
2236
Engine Model
C9 ACERT
Net Power
270hp
Power Measured @
1800rpm
Displacement
537cu in
Bore
4.4in
Stroke
5.9in
Net Power - Iso 9249
268hp
Net Power - Sae J1349
266hp
Engine Model
Cat C9 ACERT
Net Power - Eec 80/1269
268hp
Net Flywheel Power
268hp
Operational
Operating Weight
79700lb
Fuel Capacity
163.8gal
Cooling System Fluid Capacity
10.6gal
Hydraulic System Fluid Capacity
108.3gal
Engine Oil Capacity
10.6gal
Operating Voltage
24V
Swing Drive Fluid Capacity
3gal
Alternator Supplied Amperage
65amps
Hydraulic System Relief Valve Pressure
5221psi
Hydraulic Pump Flow Capacity
148gal/min
Swing Mechanism
Swing Torque
80142lb ft
Swing Speed
10rpm
Weights
Operating Weight
79700lb
Counterweight
13271.9lb
Operating Weight - Standard Undercarriage
79700lb
Buckets
Reference Bucket Capacity
1.6yd3
Minimum Bucket Capacity
1yd3
Maximum Bucket Capacity
3.4yd3
Hydraulic System
Pilot System - Maximum Flow
11.4 gal/min
Pilot System - Maximum Pressure
565.7 psi
Maximum Pressure - Travel
5076 psi
Maximum Pressure - Swing
4061 psi
Maximum Pressure - Heavy Lift
5221 psi
Main Implement System - Maximum Flow (2x)
74 gal/min
Boom Cylinder - Bore
5.9in
Boom Cylinder - Stroke
56.7in
Maximum Pressure - Equipment
5076 psi
Db Family Bucket Cylinder - Bore
5.9in
Db Family Bucket Cylinder - Stroke
45.3in
Tb1 Family Bucket Cylinder - Bore
6.3in
Tb1 Family Bucket Cylinder - Stroke
53.4in
Operating Specifications
Maximum Bucket Capacity
3.4yd3
Service Refill Capacities
Cooling System
10.6gal
Final Drive - Each
2.1gal
Hydraulic System - Including Tank
108.3gal
Engine Oil
10.6gal
Fuel Tank Capacity
163.8gal
Swing Drive
5gal
Standards
Brakes
SAE J1026 APR90
Cab/Fogs
SAE J1356 FEB88
Sound Performance
Performance
ANSI/SAE J1166 OCT 98
Track
Optional - Double Grouser
28in
Number Of Track Rollers - Each Side - Long Undercarriage
9
Number Of Shoes - Each Side - Long Undercarriage
49
Number Of Carrier Rollers - Each Side - Long Undercarriage
2
Standard With Long Undercarriage
32in
Ground Clearance - Fixed Gauge
17.72 in
Drive
Maximum Travel Speed
3.1mph
Maximum Drawbar Pull
67443lb
