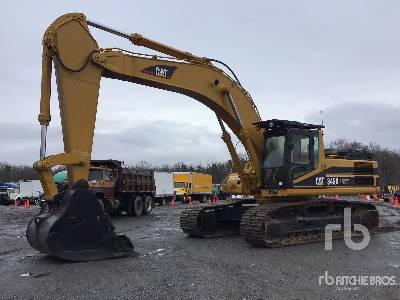

Caterpillar 345B Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
38.49ft in
C
Shipping Height Of Unit
11.42ft in
I
Max Cutting Height
35.5ft in
J
Max Loading Height
6.96ft in
K
Max Reach Along Ground
40.03ft in
L
Max Vertical Wall Digging Depth
21.4ft in
M
Max Digging Depth
27.17ft in
Boom/Stick Option (Hex) 1
reach boom w/ stick 3900mm
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
38.49ft in
I
Max Cutting Height
35.37ft in
C
Shipping Height Of Unit
11.42ft in
J
Max Loading Height
9.13ft in
K
Max Reach Along Ground
38.26ft in
L
Max Vertical Wall Digging Depth
21.53ft in
M
Max Digging Depth
25.04ft in
Boom/Stick Option (Hex) 2
reach boom w/ stick 3350mm
Boom/Stick Option (Hex) 3
A
Shipping Length Of Unit
38.49ft in
I
Max Cutting Height
34.78ft in
J
Max Loading Height
10.44ft in
C
Shipping Height Of Unit
11.42ft in
K
Max Reach Along Ground
37.05ft in
L
Max Vertical Wall Digging Depth
18.8ft in
M
Max Digging Depth
23.73ft in
Boom/Stick Option (Hex) 3
reach boom w/ stick 2900mm
Boom/Stick Option (Hex) 4
A
Shipping Length Of Unit
37.34ft in
C
Shipping Height Of Unit
12.08ft in
I
Max Cutting Height
33.7ft in
J
Max Loading Height
9.16ft in
K
Max Reach Along Ground
36.16ft in
M
Max Digging Depth
23.23ft in
Max Vertical Wall Dig Depth
18.48ft in
Boom/Stick Option (Hex) 4
mass boom w/ stick 3000mm
Boom/Stick Option (Hex) 5
A
Shipping Length Of Unit
37.34ft in
C
Shipping Height Of Unit
12.08ft in
I
Max Cutting Height
33.34ft in
J
Max Loading Height
10.47ft in
K
Max Reach Along Ground
34.98ft in
M
Max Digging Depth
21.92ft in
Max Vertical Wall Dig Depth
16.38ft in
Boom/Stick Option (Hex) 5
mass bomo w/ stick 2500mm
Dimensions
E
Ground Clearance
1.68ft in
G
Height To Top Of Cab
10.44ft in
B
Width To Outside Of Tracks
10.96ft in
D
Length Of Track On Ground
13.23ft in
H
Tail Swing Radius
11.85ft in
Removal Counterweight Clearance
4.24ft in
Undercarriage
F
Track Gauge
8.99ft in
N
Shoe Size
23.63in
Drawbar Pull
72400lb
Max Travel Speed
2.74mph
Specifications
Engine
Engine Make
2236
Engine Model
3176CATAAC
Gross Power
290hp
Displacement
628.6cu in
Operational
Operating Weight
94798.8lb
Fuel Capacity
158.6gal
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
169.1gal/min
