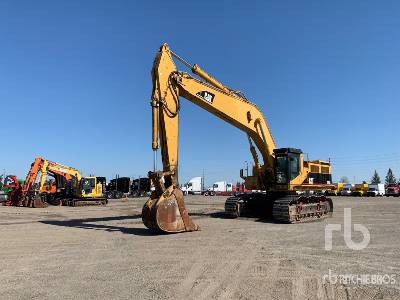

Caterpillar 385B Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Shipping Length Of Unit
44.2ft in
Shipping Height Of Unit
15.69ft in
Max Cutting Height
41.14ft in
Max Loading Height
26.45ft in
Max Reach Along Ground
40.3ft in
Max Vertical Wall Digging Depth
15.25ft in
Max Digging Depth
23.43ft in
Boom/Stick Option (Hex) 1
Mass Boom 7250mm w/ stick 2900mm
Boom/Stick Option (Hex) 2
Shipping Length Of Unit
44.21ft in
Max Cutting Height
41.6ft in
Shipping Height Of Unit
16.22ft in
Max Loading Height
27.02ft in
Max Reach Along Ground
41.68ft in
Max Vertical Wall Digging Depth
16.14ft in
Max Digging Depth
24.99ft in
Boom/Stick Option (Hex) 2
Mass Boom 7250mm w/ stick 3400mm
Boom/Stick Option (Hex) 3
Shipping Length Of Unit
48.01ft in
Max Cutting Height
44.56ft in
Max Loading Height
30.29ft in
Shipping Height Of Unit
16.28ft in
Max Reach Along Ground
45.31ft in
Max Vertical Wall Digging Depth
19.28ft in
Max Digging Depth
28.05ft in
Boom/Stick Option (Hex) 3
GP Boom 8400mm / Stick 3400mm
Boom/Stick Option (Hex) 4
Shipping Length Of Unit
47.91ft in
Shipping Height Of Unit
16.89ft in
Max Cutting Height
43.63ft in
Max Loading Height
31.24ft in
Max Reach Along Ground
47.51ft in
Max Digging Depth
30.85ft in
Boom/Stick Option (Hex) 4
GP Boom 8400mm / Stick 4400mm
Max Vertical Wall Dig Depth
16.65ft in
Boom/Stick Option (Hex) 5
Shipping Length Of Unit
47.24ft in
Shipping Height Of Unit
18.82ft in
Max Cutting Height
45.14ft in
Max Loading Height
32.74ft in
Max Reach Along Ground
50.92ft in
Max Digging Depth
34.46ft in
Boom/Stick Option (Hex) 5
GP Boom 8400mm / Stick 5500mm
Max Vertical Wall Dig Depth
19.68ft in
Boom/Stick Option (Hex) 6
Max Cutting Height
49.02ft in
Max Loading Height
36.76ft in
Shipping Length Of Unit
53.06ft in
Max Reach Along Ground
55.91ft in
Shipping Height Of Unit
17.58ft in
Max Digging Depth
37.9ft in
Boom/Stick Option (Hex) 6
Reach Boom 10000mm / Stick 5500mm
Max Vertical Wall Dig Depth
20.66ft in
Dimensions
Ground Clearance
2.92ft in
Height To Top Of Cab
12.34ft in
Width To Outside Of Tracks
11.16ft in
Length Of Track On Ground
15.1ft in
Tail Swing Radius
15.06ft in
Removal Counterweight Clearance
5.19ft in
Undercarriage
Track Gauge
11.52ft in
Shoe Size
25.6in
Max Travel Speed
2.74mph
Drawbar Pull
133086.9lb
Number Of Track Rollers Per Side
8
Number Of Shoes Per Side
47
Number Of Carrier Rollers Per Side
3
Specifications
Engine
Engine Make
2236
Engine Model
C18 ACERT Technology
Net Power
530hp
Gross Power
530hp
Power Measured @
1800rpm
Displacement
964cu in
Bore
5.6in
Stroke
6.8in
Net Power - Iso 9249
513hp
Net Power - Sae J1349
513hp
Engine Model
Caterpillar 3456 ATAAC
Net Power - Eec 80/1269
513hp
Net Flywheel Power
513hp
Operational
Operating Weight
185475lb
Fuel Capacity
327.6gal
Cooling System Fluid Capacity
26.7gal
Hydraulic System Fluid Capacity
262.9gal
Engine Oil Capacity
17.2gal
Swing Drive Fluid Capacity
5.1gal
Hydraulic System Relief Valve Pressure
4641.3psi
Hydraulic Pump Flow Capacity
258.9gal/min
Swing Mechanism
Swing Speed
6.2rpm
Swing Torque
lb ft
Weights
Operating Weight - Long Undercarriage
189770lb
Operating Weight - Standard Undercarriage
183940lb
Buckets
Reference Bucket Capacity
3.9yd3
Maximum Bucket Capacity
7.1yd3
Hydraulic System
Pilot System - Maximum Flow
23.8 gal/min
Pilot System - Maximum Pressure
595 psi
Maximum Pressure - Travel
5075 psi
Maximum Pressure - Swing
3770 psi
Swing System - Maximum Flow
119 gal/min
Boom Cylinder - Bore
8.3in
Boom Cylinder - Stroke
77.4in
Stick Cylinder - Bore
8.7in
Stick Cylinder - Stroke
89.1in
Main System - Maximum Flow - Total
258 gal/min
Maximum Pressure - Equipment - Heavy Lift
5075 psi
Maximum Pressure - Equipment - Normal
4640 psi
Hb Family Bucket Cylinder - Bore
7.9in
Hb Family Bucket Cylinder - Stroke
57.1in
Jb Family Bucket Cylinder - Stroke
62.4in
Jb Family Bucket Cylinder - Bore
8.7in
Operating Specifications
Maximum Reach - Ground Level
51.6ft in
Maximum Digging Depth
35.1ft in
Service Refill Capacities
Cooling System
26.7gal
Final Drive - Each
5.5gal
Hydraulic Tank
214gal
Hydraulic System - Including Tank
263gal
Engine Oil
21.1gal
Fuel Tank Capacity
328gal
Swing Drive - Each
5gal
Standards
Brakes
SAE J1026 APR 90
Cab/Fogs
SAE J1356 FEB 88 ISO 10262
Sound Performance
Performance
ANSI/SAE J1166 OCT 98
Track
Number Of Carrier Rollers - Each Side
3
Number Of Track Rollers - Each Side - Long Undercarriage
9
Number Of Shoes - Each Side - Long Undercarriage
51
Standard With Long Undercarriage
36in
Optional For Long Undercarriage
30in
Number Of Shoes - Each Side - Standard Undercarriage
47
Number Of Track Rollers - Each Side - Standard Undercarriage
8
Standard With Standard Length Undercarriage
30in
Optional For Standard Length Undercarriage
36in
Drive
Maximum Travel Speed
2.8mph
Maximum Drawbar Pull - Long Undercarriage
132810lb
Maximum Drawbar Pull - Standard Undercarriage
133030lb
