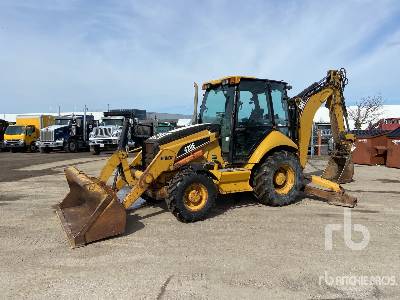

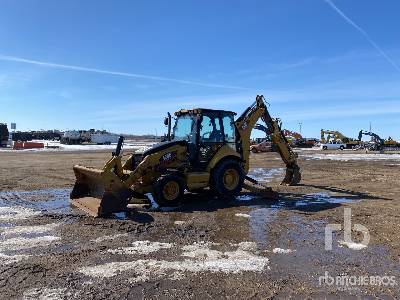

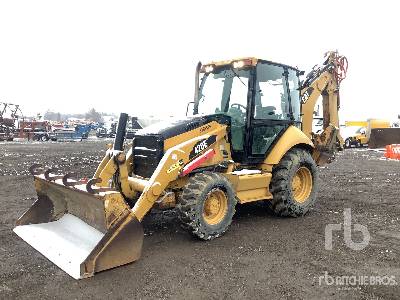

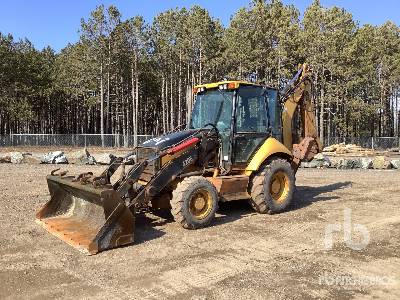

Caterpillar 420E Loader Backhoe
Units
Dimensions
Backhoe
J
Load Height - Std
11.92ft in
K
Reach From Swivel - Std
18.42ft in
L
Dig Depth - Std
14.34ft in
M
Reach At Load Height - Std
5.84ft in
Load Height - Ext
13.59ft in
Bucket Dig Force - Ext
13863lb
Bucket Dig Force - Std
13875lb
Dig Depth - Ext
17.92ft in
Reach At Load Height - Ext
9.09ft in
Load At Max Lift - Ext
2288lb
Load At Max Lift - Std
3511lb
Reach From Swivel - Ext
21.84ft in
Dimensions
A
Transport Length
24.1ft in
B
Transport Width
8ft in
C
Transport Height
11.75ft in
D
Wheelbase
7.25ft in
E
Ground Clearance
1.05ft in
Height To Top Of Suspended Cab
9.25ft in
Loader
G
Clearance At Max Dump Height
8.42ft in
H
Reach At Max Dump Height
2.84ft in
I
Dig Depth
4in
Bucket Breakout Force
10242lb
Bucket Width
7.42in
Bucket Capacity
1.25yd3
Lift Capacity At Full Height
6457lb
Specifications
Engine
Engine Make
2236
Engine Model
C4.4 DIT
Gross Power
101hp
Net Power
93hp
Power Measured @
2200rpm
Torque Measured @
1400rpm
Net Torque Rise
36%
Net Max Torque
301lb ft
Displacement
268cu in
Operational
Fuel Capacity
38gal
Operating Weight 4wd
16115.8lb
Max Weight
24250.9lb
Hydraulic System Fluid Capacity
20.9gal
Oil System Fluid Capacity
2gal
Cooling System Fluid Capacity
4.4gal
Transmission Fluid Capacity
5gal
Front Axle Fluid Capacity
2.9gal
Rear Axle Fluid Capacity
4.4gal
Turning Radius
17.8ft in
Tire Size Front - 2wd / 4wd
11L-16 F-3/12.5/80-18 (10ply) 1-3 Super Traction
Rear Tires Size 2wd/4wd
19.5L-24 (12 ply) R4 ATU/ 19.5L-24 (12 ply) IT 525
Operating Voltage
12V
Transmission
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
24.9mph
Max Speed Reverse
24.9mph
Hydraulic
Pump Type
variable-flow, axial piston
Pump Flow Capacity
43gal/min
Relief Valve Pressure
3611psi
