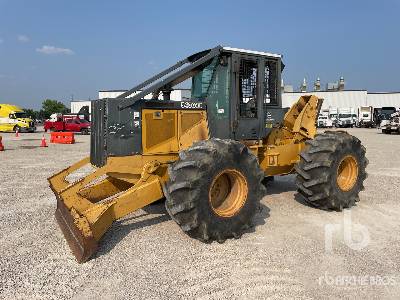

Caterpillar 508 Cable Skidder
Units
Dimensions
Dimensions
A
Overall Length
17.58ft in
B
Overall Width
8.83ft in
C
Height To Top Of Cab
9.42ft in
E
Ground Clearance
1.71ft in
D
Wheelbase
9.19ft in
Drum Diameter
8.98in
Max Line Pull - Bare Drum
21137lb
Max Line Speed
255.91ft/min
Drum Capacity At Cable Width
170.61ft in
Cable Width
0.63in
Blade Width
6.89ft in
Specifications
Engine
Engine Make
2236
Engine Model
3204
Gross Power
95hp
Displacement
317.4cu in
Operational
Operating Weight
17130lb
Fuel Capacity
42.6gal
Hydraulic System Fluid Capacity
6.9gal
Axle Oscillation
15degrees
Tire Size
23.1-26
Transmission
Number Of Forward Gears
3
Max Speed - Forward
16mph
