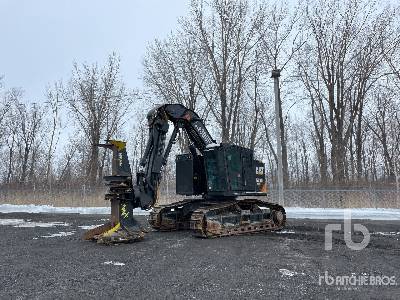

Caterpillar 573 Feller Buncher
Units
Dimensions
Dimensions
A
Overall Length
25.2ft in
B
Overall Width
9.59ft in
C
Height To Top Of Cab
10.5ft in
D
Wheelbase
9.42ft in
E
Ground Clearance
21in
Width - Overall - 28l Tires
116in
Height - Overall
125.98in
Length - With 22hc High Capacity Saw
302.36in
Wheel Base
9.42ft in
Operating Specifications
E
Ground Clearance
1.75ft in
Travel Speed - Low Range With 28l Tires
4.97mph
Turning Radius - Outside Front Tires - 28l Tires
198.03in
Articulation Angle - Left/Right - With 28l Tires
90degrees
Travel Speed - High Range With 28l Tires
14.91mph
Specifications
Engine
Engine Make
2236
Engine Model
C7 ACERT
Net Power
225.3hp
Power Measured @
2200rpm
Rated Power
225hp
Engine Model
Cat C7 ACERT
Engine Power
225hp
Operational
Operating Weight W/O Attachment
27776.1lb
Fuel Capacity
72.2gal
Operating Voltage
12V
Alternator Supplied Amperage
130amps
Max Speed
15mph
Steering Articulation
90degrees
Tire Size
28L x 26 (14PR)
Transmission
Transmission Type
Hydrostatic transmission
Weights
Operating Weight - Without Attachment
27775lb
Est. Operating Weight
27776.1lb
Hydraulic System
Cylinders - Steering
89 mm X 51 mm (3.5 in X 2.0 in)
Cylinders - Lift
102 mm X 64 mm (4.0 in X 2.5 in )
Cylinders - Tilt
102 mm X 64 mm (4.0 in X 2.5 in )
Hydrostatic Pump Flow
65 gal/min
Disc Saw Pump Flow
32 gal/min
Service Refill Capacities
Fuel Tank
72gal
