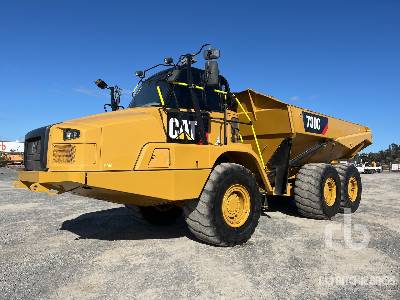

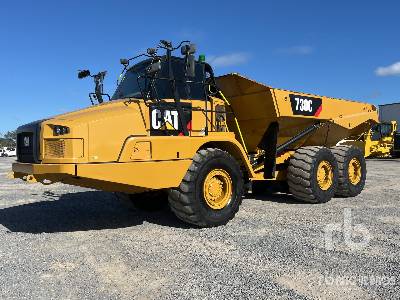

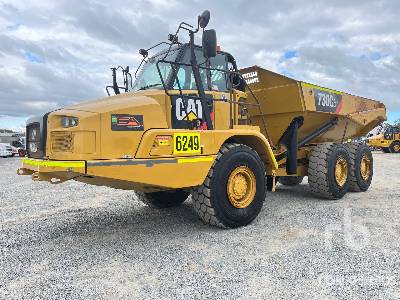

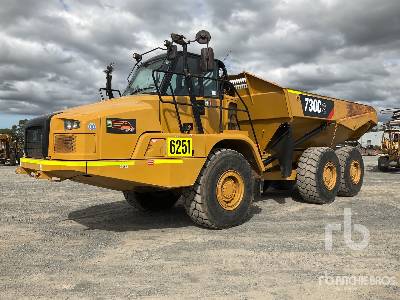

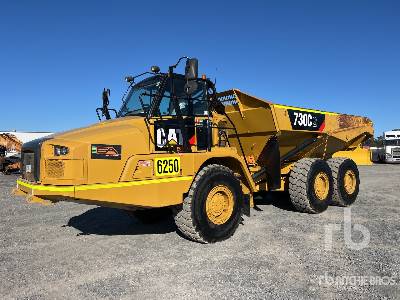

Caterpillar 730C Articulated Dump Truck
Units
Dimensions
Dump
H
Dump Angle
45degrees
Rated Payload
62000lb
Capacity - Heaped
23yd3
Capacity - Struck
17.4yd3
Lower Time
8sec
Raise Time
12sec
Specifications
Engine
Engine Make
2236
Engine Model
C13
Gross Power
375hp
Net Power
367hp
Max Torque
1579lb ft
Torque Measured @
1200rpm
Displacement
763cu in
Bore
5.2in
Stroke
6.2in
Net Power - Sae J1349
367hp
Gross Power - Sae J1995
375hp
Engine Model
Cat C13
Net Power - Iso 14396
370hp
No Engine De-Rating Required Below
12500ft in
Peak Engine Torque Gross (Sae J1995)
1579lb ft
Peak Engine Torque Net (Iso 14396)
1564lb ft
Peak Engine Torque Speed
1200rpm
Engine Model - U.S. Epa Tier 4 Final/Eu Stage Iv
Cat C13 ACERT
Operational
Fuel Capacity
108.8gal
Hydraulic System Fluid Capacity
29.1gal
Cooling System Fluid Capacity
21.9gal
Transmission Fluid Capacity
9.2gal
Transmission
Number Of Forward Gears
6
Number Of Reverse Gears
1
Forward - 1
5mph
Forward - 2
9mph
Forward - 3
14mph
Forward - 4
21mph
Forward - 5
29mph
Forward - 6
34mph
Reverse - 1
6mph
Steering
Lock To Lock
4.75 seconds @ 60 rpm
Weights
Front Axle - Empty
33091lb
Center Axle - Empty
10384%
Rear Axle - Empty
9656lb
Front Axle - Loaded
7231%
Center Axle - Loaded
27249%
Rear Axle - Loaded
27249lb
Total Empty
53131lb
Total Loaded
61729lb
Service Refill Capacities
Cooling System
21.9gal
Fuel Tank
108.8gal
Engine Crankcase
10.5gal
Transmission
9.2gal
Hydraulic System
29.1gal
Final Drives/Differential
35.7gal
Output Transfer Gear Box
6.3gal
Def Tank (Iso 2224-1)
5.3gal
Standards
Cab - Fops
ISO 3449 Level II - 2005
Cab - Rops
ISO 3471 - 2008
Brakes
ISO 3450 - 2011
Steering
ISO 5010 - 2007
Operating Weights
Front Axle - Empty
33091lb
Center Axle - Empty
10384lb
Rear Axle - Empty
9656lb
Total - Empty
53131lb
Front Axle - Rated Load
7231lb
Center Axle - Rated Load
27249lb
Rear Axle - Rated Load
27249lb
Total - Rated Load
61729lb
Front Axle - Loaded
40322lb
Center Axle - Loaded
37633lb
Rear Axle - Loaded
36905lb
Total - Loaded
114860lb
Sound Levels
Interior Cab
76 dB(A)
Turning Circle
Note
Dimensions are for machines equipped with 23.5R25 tires.
Turning Dimensions - Steer Angle - Left/Right
45degrees
Turning Dimensions - Sae Turning Radius
294in
Turning Dimensions - Clearance Radius
318in
Turning Dimensions - Inside Radius
153in
Turning Dimensions - Aisle Width
210in
Body Capacities
Heaped (Sae 2:1)
23yd3
Struck
17.4yd3
Tailgate Struck
18.2yd3
Tailgate Heaped Sae 2:1
24.6yd3
Body Hoist
Raise Time
12 s
Lower Time
8 s
Body Plate
Body Plate Type
High Strength Brinell HB450 Wear Resistant Steel
