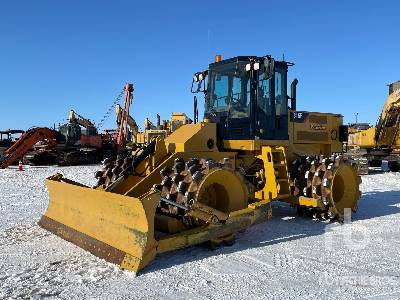

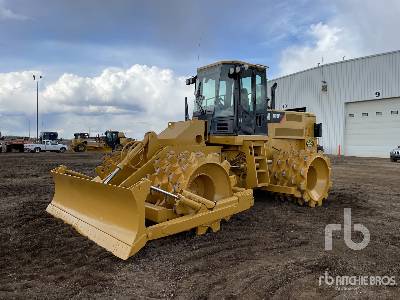

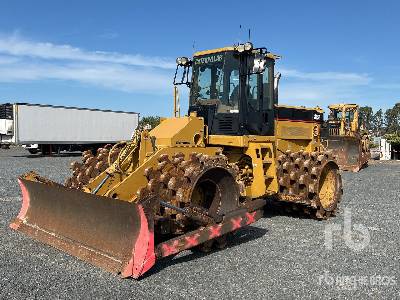

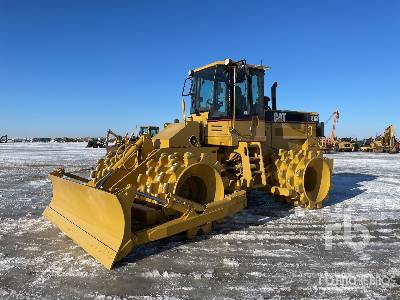

Caterpillar 815F Compactor
Units
Dimensions
Dimensions
A
Length With Blade On Ground
22.46ft in
E
Ground Clearance
15.35ft in
B
Width Over Wheels
10.64ft in
C
Height To Top Of Cab
10.99ft in
D
Wheelbase
11ft in
Width - Over End Bits
11.98ft in
Drum Width
3.2in
Length - With Blade On Ground
22.46ft in
Blade Height - Straight
2.8ft in
Blade Width - Straight
12.3ft in
Wheel Base
131.89ft in
Width - Over Drums
10.64ft in
Operating Specifications
E
Ground Clearance
17ft in
2-Pass Coverage Width
14.25ft in
Travel Speed Forward
23.3mph
Travel Speed Reverse
26.7mph
Turning Radius Blade - Outside
41.4ft in
Specifications
Fuel Tank
Fuel Tank Capacity
122.6gal
Engine
Engine Make
2236
Engine Model
3176C ATAAC
Net Power
240.1hp
Gross Power
235hp
Displacement
628.6cu in
Engine Model
Cat 3306 TA
Flywheel Power
220hp
Operational
Operating Weight
45757lb
Fuel Capacity
117.9gal
Hydraulic System Fluid Capacity
23.3gal
Engine Oil Capacity
9gal
Cooling System Fluid Capacity
14.6gal
Transmission Fluid Capacity
13.3gal
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Transmission
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed
11.2mph
Forward - 1
3.9mph
Forward - 2
6.8mph
Forward - 3
11.2mph
Steering
Steering Angle
36degrees
Transmission
Reverse - 1
4.5mph
Reverse - 2
7.6mph
Reverse - 3
12.2mph
Wheels
Front Wheels Drum Width
39.1in
Weights
Operating Weight
45934lb
Wheels
Front Wheels Drum Diameter
40.6in
Rear Wheels Drum Width
39.1in
Rear Wheels Drum Diameter
40.6in
Tips Per Row
12
Outside Diameter
4.6ft in
Drum Diameter
3.4ft in
Drum Width
11ft in
Tips Per Wheel
60
Blade
Height
33.9in
Width
12ft in
Axles
Front
Fixed
Rear
Oscillates
Service Refill Capacities
Cooling System
14.6gal
Fuel Tank
117.9gal
Crankcase
9gal
Hydraulic Tank
23.3gal
Transmission
13.3gal
Differential - Final Drives - Front
17.2gal
Differential - Final Drives - Rear
17.2gal
Blades
Moldboard - Length
12ft in
Height - Including Cutting Edge
2.9ft in
Maximum Depth Of Cut
0.8ft in
Maximum Lift Above Ground
1.3ft in
