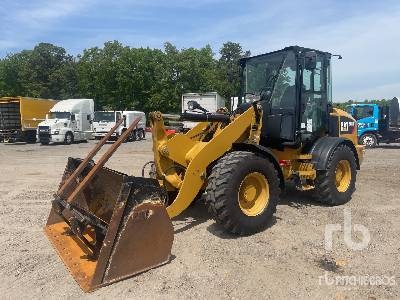

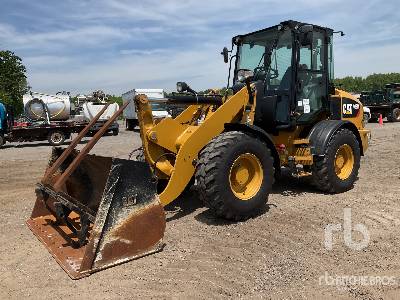

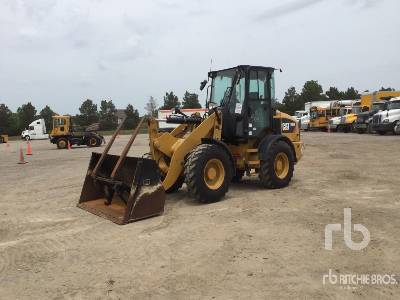

Caterpillar 908M Ag Handler Wheel Loader
Dimensions
Dimensions - With Iso Coupler - Approximate
Width - Tread Center
5.08ft in
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)
Articulation Angle
39 degrees
Clearance - Bucket At 45 Degrees
9.33ft in
Clearance - Full Lift
10.25ft in
Clearance - Level Arm
4.42ft in
Clearance - Level Bucket
10.33ft in
Departure Angle
33 degrees
Dig Depth
5.7in
Dump Angle At Full Lift
45 degrees
Fork Dig Depth
6.4in
Fork Reach At Full Lift
1.5ft in
Height - Bucket Pin
11ft in
Height - Ground Clearance
12.96in
Height - Ground To Cab
8.58ft in
Length - Overall With Bucket
18.25ft in
Length - Overall With Forks
19.93ft in
Length - Wheel Base
7.08ft in
Reach - Bucket At 45 Degrees
3.42ft in
Reach - Ground
2.83ft in
Reach - Level Arm
4.33ft in
Turning Radius - Inside Tire
6.67ft in
Turning Radius - Over Bucket
14.67ft in
Width - Bucket
6.75ft in
Width - Over Tires
6.5ft in
Dimensions - With Ssl Coupler - Approximate
Reach - Level Arm
4.75ft in
Width - Tread Center
5.08ft in
Articulation Angle
39 degrees
Height - Ground To Cab
8.58ft in
Length - Overall With Bucket
18.75ft in
Clearance - Bucket At 45 Degrees
9.17ft in
Clearance - Full Lift
10.75ft in
Turning Radius - Inside Tire
6.67ft in
Clearance - Level Arm
4.92ft in
Width - Over Tires
6.5ft in
Clearance - Level Bucket
10.33ft in
Length - Overall With Forks
20ft in
Departure Angle
33 degrees
Length - Wheel Base
7.08ft in
Dig Depth
6in
Turning Radius - Over Bucket
14.75ft in
Reach - Bucket At 45 Degrees
3.92ft in
Dump Angle At Full Lift
45 degrees
Fork Dig Depth
0.8in
Note
Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)
Fork Reach At Full Lift
1.92ft in
Reach - Ground
2.92ft in
Height - Bucket Pin
10.5ft in
Width - Bucket
6.75ft in
Height - Ground Clearance
12.96in
Specifications
Engine
Emissions
*The Cat C3.3B DIT engine meets U.S. EPA Tier 4 Final/EU Stage IIIB emission standards.
Maximum Gross Power - Sae J1995
74hp
Maximum Net Power - Sae J1349
68hp
Maximum Gross Power - Iso 14396
73hp
Rated Net Power - 2,500 Rpm - Sae J1349
68hp
Maximum Net Power - Iso 9249
69hp
Maximum Gross Power
73hp
Operational
Operating Weight
14402lb
Weights
Operating Weight
14402lb
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).
Buckets
Bucket Capacities
ISO Coupler - 0.9-1.5 m; SSL Style Coupler - 1.2-2.0 yd
Bucket Capacities - Iso Coupler
0.9-1.5 m
Bucket Capacities - Ssl Style Coupler
1.2-2.0 yd
Hydraulic System
Hydraulic Cycle Time - Dump
1.3 seconds
Main Relief - 3rd Aux Flow: Standard
22 gal/min
Main Relief - 3rd Aux Flow
3400 psi
Main Relief - 3rd Aux Flow: High Flow
34 gal/min
Hydraulic Cycle Time - Lift
5.2 seconds
Hydraulic Cycle Time - Rackback
2.1 seconds
Hydraulic Cycle Time - Lower
3.2 seconds
Service Refill Capacities
Cooling System
4.5gal
Fuel Tank
20.6gal
Hydraulic System
18.5gal
Engine Oil
3gal
Maximum Material Densities - General Purpose Bucket
Bucket Width
81in
Maximum Material Density
2914 lb/yd
Rated Capacity
1.4yd3
Dump Height
110in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.
Maximum Material Densities - Light Material Bucket
Bucket Width
81in
Maximum Material Density
2771 lb/yd
Rated Capacity
2yd3
Dump Height
111in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.
Maximum Material Densities - Multi Purpose Bucket
Bucket Width
81in
Maximum Material Density
4060 lb/yd
Rated Capacity
1.2yd3
Dump Height
110in
Note
Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.
Operating Specifications - Iso Coupler
Rated Bucket Capacity
1.5yd3
Rated Operating Load At Full Turn - Bucket
4396lb
Tire Size
400/70 R20
Straight Tipping Load - Bucket
10408lb
Rated Operating Load At Full Turn - Forks (En 474-3:2006, Firm And Level Ground, 1.25 Stability And 500 Mm [20 In] Load Center)
5719lb
Breakout Force - Bucket
12337lb ft
Full Turn Static Tipping Load - Bucket
8789lb
Rack Back - Transport Position
51 degrees
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).
Operating Specifications - Ssl Coupler
Rated Bucket Capacity
1.5yd3
Rated Operating Load At Full Turn - Bucket
4385lb
Tire Size
400/70 R20
Straight Tipping Load - Bucket
10399lb
Rated Operating Load At Full Turn - Forks (En 474-3:2006, Firm And Level Ground, 1.25 Stability And 500 Mm [20 In] Load Center)
5336lb
Breakout Force - Bucket
10215lb ft
Full Turn Static Tipping Load - Bucket
8766lb
Rack Back - Transport Position
51 degrees
Note
Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).
Travel Speeds
Speed 1
6.2mph
Speed 2
12.4mph
High Speed
21.7mph
