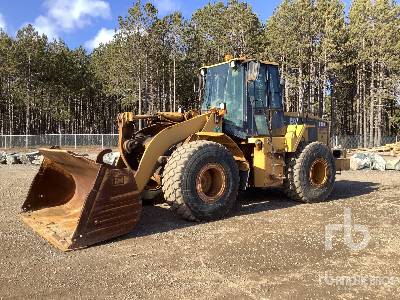

Caterpillar 928Hz Wheel Loader
Units
Dimensions
Dimensions
E
Ground Clearance
1.34ft in
Bucket Pin Height - Maximum Lift
12.7ft in
Carry Height
1.47ft in
Centerline Of Front Axle To Hitch
4.76ft in
Digging Depth
3.39in
Dump Angle At Maximum Lift
45degrees
Dump Clearance At Maximum Lift - 45 Degrees
9.45ft in
Height - Center Of Axle
2.25ft in
Height - Top Of Exhaust Stack
10.46ft in
Height - Top Of Hood
86.52in
Height - Top Of Rops/Fops
10.73ft in
Length - Rear Axle To Bumper
6.3ft in
Overall Height - Bucket Raised
16.31ft in
Overall Length
23.79ft in
Rack Back Angle - Carry
47.8degrees
Rack Back Angle - Ground
44degrees
Rack Back Angle - Maximum Lift
60degrees
Reach At Maximum Lift And 45 Degrees Dump
3.04ft in
Wheel Base
9.51ft in
Bucket Clearance-Maximum Lift/Carry
12.31ft in
Width - Over Tires
8.43ft in
Specifications
Engine
Displacement
403cu in
Net Torque
536lb ft
Peak Torque
547lb ft
Bore
4.2in
Stroke
5in
Rated Net Power
149hp
Sae J1349 (2)
160hp
Iso 9249 (1997) (2)
161hp
Eec 80/1269 (2)
161hp
Sae J1349 (1)
149hp
Iso 9249 (1997) (1)
150hp
Eec 80/1269 (1)
150hp
Maximum Net Power - 2000 Rpm
160hp
Operational
Operating Weight
27699lb
Transmission
Forward - 1
4.9mph
Reverse - 1
4.9mph
Steering
Steering Angle - Each Direction
40degrees
Minimum Turning Radius - Over Tires
206in
Steering Cylinder, Two, Bore
2.8in
Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi)
27 gal/min
Maximum Working Pressure
3000 psi
Steering Articulation
40degrees
Transmission
2
7.8mph
3
16mph
4
23.4mph
Standard Transmission Maximum Travel Speeds
23.4mph
Tires
Tread Width
8.5ft in
Size
20.5 R25 L3 XHA
Buckets
Bucket Capacities
2.0 m3 - 2.3 m3 2.6 yd3 - 3.0 yd3
Operating Specifications
Static Tipping Load - Full Turn
19089lb
Articulation Angle
40degrees
Reach - Full Lift And 45 Degrees Dump
3ft in
Dump Clearance At Full Lift And 45 Degrees Dump Angle
9.5ft in
Service Refill Capacities
Cooling System
11.1gal
Fuel Tank
59.4gal
Crankcase
4gal
Hydraulic Tank
18.5gal
Hydraulic System - Including Tank
33gal
Transmission
9.1gal
Front
6.9gal
Rear
6.6gal
Cab
Rops
SAE J1040 MAY94, ISO 3471-1994
Fops
SAE J/ISO 3449 APR98 Level II, ISO 3449-1992 Level II
Loader Hydraulic System
Pump Flow - Implement Pump
40.2 gal/min
Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf)
40.3 gal/min
Maximum Working Pressure
3755 psi
Raise
6.1 s
Dump
1.2 s
Lower, Empty, Float Down
2.8 s
Total
10.1 s
Bore (1)
4.8in
Stroke (1)
27in
Bore (2)
5in
Stroke (2)
21.7in
Hydraulic Cycle Time
10.1 Seconds
Relief Pressure - Implement Pump
3755 psi
