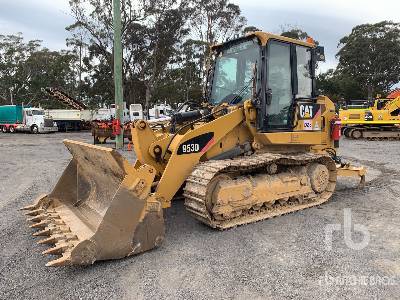

Caterpillar 953D SH Crawler Loader
Units
Dimensions
Undercarriage
Ground Pressure - Optional Shoe
12.3 psi
Ground Pressure - Standard Shoe
9.5 psi
Ground Pressure - Standard Shoe With Trim Blade
9.8 psi
Grouser Height - Double Grouser
1.4in
Track Shoe Type
Double Grouser
Track Shoe Width - Optional
15in
Track Shoe Width - Standard
18.9in
Specifications
Engine
Net Power
148hp
Displacement
402.8cu in
Bore
4.2in
Stroke
5in
Engine Model
Cat C6.6 ACERT
Net Flywheel Power
148hp
Regulations
Rating at 2,000 rpm
Weights
Operating Weight - Gp Bucket With Teeth
34229lb
Operating Weight - Trim Blade All Material
33726lb
Operating Weight - With Gp Bucket And Teeth
34229lb
Operating Weight - With Trim Blade
33726lb
Buckets
Capacity - General Purpose
2.5yd3
Bucket Width - General Purpose
97.8in
Capacity - Multi-Purpose
2.1yd3
Bucket Width - Multi-Purpose
97.3in
Capacity - Gp
2.5yd3
Capacity - Mp
2.1yd3
Blade
Trim Blade Capacity - All Material
2.1yd3
Trim Blade Capacity - Coal
Can be designed at order
Drive System
Track Motor
Two, variable displacement, bent axis motors
Drive System Type
Drive System Hydrostatic drive with infinite machine speeds to 10.0 km/h (6.2 mph)
Drive Pump
Two, variable-displacement, slipper-type axial piston pumps
Relief Valve Setting
6961.8 psi
Main Service Refills
Fuel Tank
83.5gal
Cooling System
8gal
Hydraulic Tank
18.5gal
Trim Blade
Capacity - All Material
3yd3
