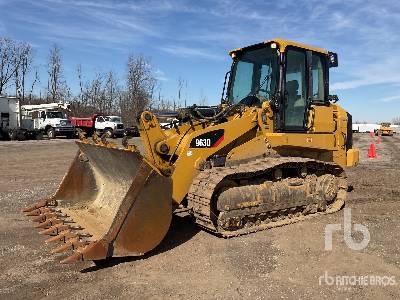

Caterpillar 963D Crawler Loader
Units
Dimensions
Dimensions
A
Length With Bucket On Ground
21.51ft in
E
Ground Clearance
1.54ft in
B
Width To Outside Of Tracks
7.48ft in
C
Height To Top Of Cab
10.94ft in
G
Clearance At Full Height And Dump
10.35ft in
H
Reach At Dump Height
3.81ft in
F
Length To Front Of Track
15.58ft in
Ripper Specifications
E
Ground Clearance
34.4in
Cylinders - Bore
4.49in
Cylinders - Stroke
11.3in
Addition To Machine Length Due To Ripper In Transportation Position
19.4in
Number Of Pockets
3
Overall Width/Beam
76.7in
Penetration
10.6in
Shank Cross Section
58.5 mm x 138 mm 50 in x 5.4 in
Ripping Width
72.3in
Type
Radial
Undercarriage
I
Track Gauge
72.8in
D
Length Of Track On Ground
8.33ft in
Number Of Shoes - Each Side
38
Number Of Shoes Per Side
38
Number Of Track Rollers Per Side
7
Track Shoe Type
Double Grouser
Track Shoe Width
21.5in
Ground Contact Area
4340in2
Track Shoe Width - Optional
17.7in
Track Shoe Width - Standard
21.6in
Ground Pressure
10.3psi
Ground Pressure - Optional Shoe
12.4 psi
Ground Pressure - Standard Shoe
10.3 psi
Grouser Height - Double Grouser
1.65in
Ground Contact Area - Standard Shoe
4340in2
Track On Ground
100.1in
Ground Contact Area - Optional Shoe
3565in2
Track Rollers - Each Side
7
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C6.6 ACERT
Net Power
189hp
Power Measured @
2000rpm
Displacement
402.8cu in
Bore
4.2in
Stroke
5in
Net Power - Cat
189hp
Net Power - Iso 9249
189hp
Net Power - Sae J1349
189hp
Engine Model
Cat C6.6 ACERT
Flywheel Power
189hp
Net Power - Eec 80/1269
189hp
Operational
Operating Weight
44577lb
Fuel Capacity
105.6gal
Cooling System Fluid Capacity
8.3gal
Engine Oil Capacity
4.4gal
Final Drive Fluid Capacity - Each
4gal
Hydraulic System Fluid Capacity
23.7gal
Static Tipping Load
33001lb
Breakout Force - Std Bucket
46908lb
Bucket Capacity - Struck
2.7yd3
Bucket Capacity - Heaped
3yd3
Operating Voltage
24V
Max Speed
6mph
Weights
Operating Weight
44577lb
Buckets
Capacity - General Purpose
3.2yd3
Bucket Width - General Purpose
102.8in
Capacity - Multi-Purpose
2.6yd3
Bucket Width - Multi-Purpose
101.3in
Hydraulic
Pump Type
Closed center, load sensing/piston
Pump Flow Capacity
55.2gal/min
Relief Valve Pressure
3989psi
Raise Time
5.7sec
Dump Time
1.3sec
Lower Time
3.7sec
Service Refill Capacities
Cooling System
8.3gal
Fuel Tank
105.6gal
Final Drive - Each
4gal
Hydraulic Tank
23.7gal
Crankcase - With Filter
4.4gal
Pivot Shaft
0.5gal
Standards
Brakes
Brakes
Rops/Fops
ROPS/FOPS
Cab
Cab
Bucket Cycle Times
Cycle Time - Dump
1.3 s
Cycle Time - Float Down
2.9 s
Cycle Time - Raise
5.8 s
Cycle Time - Total
6.4 s
Drive System
Track Motor
Two, variable displacement, bent axis motors
Hydraulic System - Equipment
Hydraulic System - Equipment Type
Closed center, load sensing / piston
Main Relief Valve Setting
4061 psi
Output
55.2 gal/min
