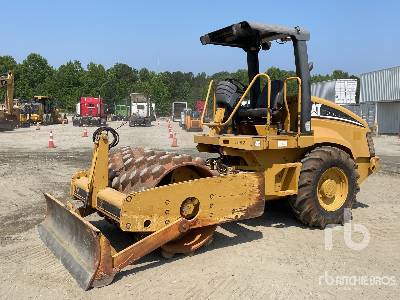

Caterpillar CP563E Vibratory Compactor
Units
Dimensions
Dimensions
A
Overall Length W/O Blade
18.9ft in
B
Width Over Tires
7.6ft in
C
Height To Top Of Cab
10.08ft in
D
Wheelbase
9.52in
E
Ground Clearance
17.96in
Overall Length W/ Blade
20.67ft in
Drum
F
Drum Diameter
50.99in
Pad Surface Area
13.86in2
Vibration Frequency 1
31.9Hz
Number Of Pads
140
Centrifugal Force - Low
29899.59lb
Drum Width
84.02in
Nominal Amplitude - High
0.07in
Nominal Amplitude - Low
0.04in
Centrifugal Force - High
59799.18lb
Pad Height
5in
Specifications
Engine
Engine Make
2236
Engine Model
3056E ATAAC
Gross Power
150.2hp
Net Power
143.5hp
Displacement
366.2cu in
Aspiration
turbocharged
Operational
Operating Weight
26191lb
Fuel Capacity
87.2gal
Cooling System Fluid Capacity
6.9gal
Engine Oil Capacity
3.2gal
Hydraulic System Fluid Capacity
17gal
Max Speed
7.3mph
Tires
23.1x26 10ply
Operating Voltage
24V
Alternator Supplied Amperage
55amps
Blade
Blade Width
8.3ft in
Blade Height
26.8in
