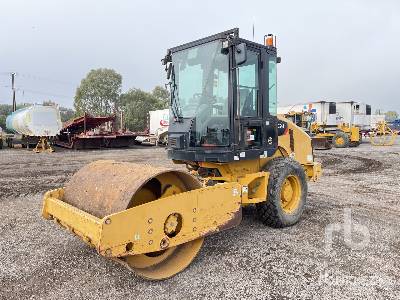

Caterpillar CS74B Vibratory Compactor
Units
Dimensions
Dimensions
F
Drum Diameter
60.4in
Wheel Base
9.58ft in
Height - With Rops/Fops Or Cab
10.25ft in
Optional Blade Height
27.1in
Overall Length
19.83ft in
Overall Length - With Blade Option
21.5ft in
Overall Width
7.67ft in
Overall Width - With Blade Option
8.25ft in
Drum
Drum Width
84in
Operating Specifications
E
Ground Clearance
1.44ft in
Turning Radius - Inside Drum Edge
144.96in
Compaction Width
84in
Static Linear Load - With Cab
278.7 lb/in
Travel Speed - Maximum
7mph
Specifications
Engine
Gross Power
173.7hp
Engine Model
Cat C4.4 with ACERT
Tires
Tires
23.1 x 26
Weights
Operating Weight - With Cab
35264lb
Weight - Drum With Cab
23410lb
Service Refill Capacities
Fuel Tank Capacity
88gal
Vibratory System
Centrifugal Force - Maximum
74600lb
Nominal Amplitude - High
0.1in
Centrifugal Force - Minimum
37300lb
Vibratory Frequency - Standard
28 Hz (1680 vpm)
Nominal Amplitude - Low
0.1in
Variable Frequency Option Range
23.3 - 28 Hz (1400-1680 vpm)
