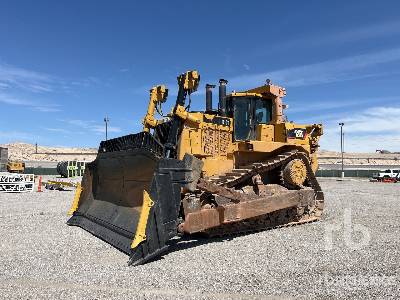

Caterpillar D10T WH Crawler Tractor
Units
Dimensions
Blades
U-Blade Capacity With Trash Rack
63.9yd3
Blade Type
U
U-Blade Width
17.27ft in
Dimensions
A
Length W/ Blade
24.61ft in
B
Width Over Tracks
10.3ft in
C
Height To Top Of Cab
13.38ft in
D
Length Of Track On Ground
12.75ft in
E
Ground Clearance
2ft in
F
Length W/O Blade
17.5ft in
Overall Length - With Blade
295.32in
Height - Rops/Canopy
14.24ft in
Height - Stripped Top
10.56ft in
Overall Length - Basic Tractor
17.5ft in
Height - Rops Cab
13.38ft in
Height
14.24ft in
Width - Over Trunnions
12.2ft in
Width - Without Trunnions - Standard Shoe
10.3ft in
Undercarriage
G
Track Gauge
8.37ft in
H
Standard Shoe Size
24in
Number Of Track Rollers Per Side
8
Track Rollers/Side
8
Ground Contact Area
7326in2
Length - Track On Ground
12.75ft in
Track Width
24ft in
Specifications
Engine
Number Of Cylinders
12
Engine Make
2236
Engine Model
C27 ACERT
Gross Power
661hp
Net Power
580hp
Power Measured @
1800rpm
Displacement
1647.5cu in
Aspiration
Turbocharged
Bore
5.4in
Stroke
6in
Engine Model
Cat C27 ACERT
Flywheel Power
580hp
Rpm
1800rpm
Operational
Operating Weight
144986lb
Fuel Capacity
293gal
Operating Voltage
24V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
Power shift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
7.9mph
Max Speed - Reverse
9.8mph
1.0 Forward
2.5mph
2.0 Forward
4.5mph
3.0 Forward
7.9mph
1.0 Reverse
3.2mph
2.0 Reverse
5.6mph
3.0 Reverse
9.7mph
Weights
Operating Weight
144986lb
Standard Blade
Width
17.3ft in
Capacity
63.9yd3
Service Refill Capacities
Fuel Tank
318gal
Standards
Rops
SAE J1040 MAY94, ISO 3471:1994
Fops
SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Rippers
Each Additional Shank
1160lb
