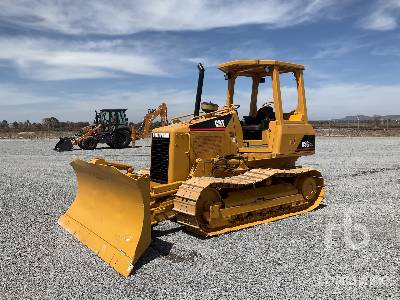

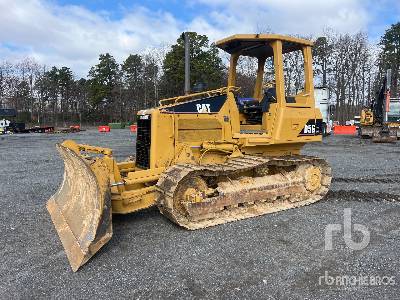

Caterpillar D5G Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
14.23ft in
B
Width Over Tracks
6.76ft in
C
Height To Top Of Cab
8.96ft in
D
Length Of Track On Ground
10.45ft in
E
Ground Clearance
1.26ft in
Undercarriage
G
Track Gauge
5.09ft in
H
Standard Shoe Size
20.08in
Ground Pressure - Xl
5.37 psi
Ground Contact Area - Xl
3663in2
Length - Track On Ground - Lgp
91in
Length - Track On Ground - Xl
91in
Ground Contact Area - Lgp
4741in2
Number Of Shoes Per Side
39
Number Of Track Rollers Per Side
7
Shoe Width - Lgp
26in
Shoe Width - Xl
20in
Track Gauge - Lgp
68in
Track Gauge - Xl
61in
Ground Pressure
5.39psi
Ground Contact Area
36631225.01in2
Ground Pressure - Lgp
4.31 psi
Specifications
Ripper
Ripper Type
Parallelogram
Number Of Shanks
3
Maximum Digging Depth
13.3in
Maximum Reach - Ground Line
24in
Maximum Ground Clearance Under Tip
16.2in
Overall Width
67.3in
Height
6.5in
Weight
1241lb
Engine
Engine Model
3046T
Gross Power
99hp
Net Power
90hp
Displacement
305cu in
Bore
3.7in
Stroke
4.7in
Engine Model
Cat 3046T
Eec 80/1269
90hp
Sae J1349
90hp
Iso 9249
90hp
Power - Gross
99hp
Power - Net
90hp
Caterpillar
90hp
Operational
Operating Weight
20547.1lb
Fuel Capacity
49.5gal
Cooling System Fluid Capacity
4.3gal
Engine Oil Capacity
3.5gal
Final Drives Fluid Capacity
3.9gal
Transmission
Max Speed - Forward
5.6mph
Max Speed - Reverse
6mph
Drive Pumps
2
Track Motors
2
Relief Valve Settings
6380 psi
Maximum Travel Speed - Forward
5.6mph
Maximum Travel Speed - Reverse
6mph
Weights
Operating Weight - Lgp
20434lb
Operating Weight - Xl
19662lb
Blade
Blade Width - Xl
105.9in
Blade Width - Intermediate
115in
Blade Width - Lgp
128.1in
Blade Height - Xl
43.3in
Blade Height - Intermediate
40.5in
Blade Height - Lgp
40.5in
Blade Capacity - Xl
2.9yd3
Blade Capacity - Intermediate
2.8yd3
Blade Capacity - Lgp
3.1yd3
Digging Depth - Xl
24.8in
Digging Depth - Intermediate
22.9in
Digging Depth - Lgp
22.9in
Standard Blade
Width
8.9ft in
Height
43.4in
Capacity
2.9yd3
Blade Angle (Both Directions)
25degrees
Cutting Depth
24.9in
Service Refill Capacities
Cooling System
4.3gal
Fuel Tank
48.6gal
Final Drive - Each - Lgp
5.7gal
Final Drive - Each - Xl
3.9gal
Crankcase - With Filter
3.4gal
Transmission - Hydraulic Tank
12gal
Standards
Rops
SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95
Fops
SAE J231-JAN81, ISO 3449-92
Hydraulic Controls
Pump Output
16.1 gal/min
Relief Valve Setting
2900 psi
Winch
Winch Drive
Hydrostatic
Control
Pilot hydraulic
Overall Width
29.2in
Drum Diameter
10in
Drum Width
10.8in
Rope Diameter - Recommended
0.7in
Weight
1345lb
Rope Diameter - Optional
0.8in
Speed
Variable
Winch Length
27.8in
Throat Clearance
6.8in
Drum Capacity - Recommended Cable
371ft in
Drum Capacity - Optional Cable
257ft in
Maximum Line Pull - Bare Drum
40000lb
Maximum Line Pull - Full Drum
25000lb
Maximum Line Speed - Bare Drum
132 ft/min
Maximum Line Speed - Full Drum
207 ft/min
