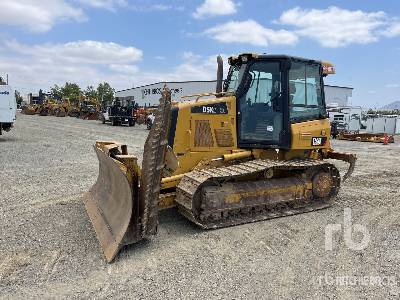

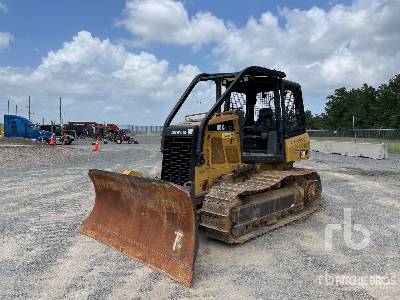

Caterpillar D5K XL Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
6.93ft in
C
Height To Top Of Cab
8.93ft in
D
Length Of Track On Ground
7.58ft in
E
Ground Clearance
1.08ft in
F
Length W/O Blade
10.71ft in
Undercarriage
G
Track Gauge
5.25ft in
H
Standard Shoe Size
20in
Ground Contact Area
3652in2
Number Of Track Rollers Per Side
7
Number Of Shoes Per Side
40
Ground Pressure
5.67psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2236
Engine Model
C4.4 ACERT
Gross Power
100hp
Net Power
96hp
Power Measured @
1900rpm
Displacement
268.6cu in
Operational
Operating Weight
20741lb
Fuel Capacity
51.5gal
Cooling System Fluid Capacity
6gal
Engine Oil Capacity
3gal
Hydraulic Fluid Capacity
15.7gal
Final Drives Fluid Capacity
2.6gal
Operating Voltage
12V
Alternator Supplied Amperage
120amps
Transmission
Transmission Type
Hydrostatic
Max Speed - Forward
5.6mph
Max Speed - Reverse
6.2mph
Hydraulic System
Relief Valve Pressure
2988psi
Pump Flow Capacity
19.4gal/min
Standard Blade
Width
9.5ft in
Height
41.3in
Capacity
2.9yd3
Blade Angle (Both Directions)
25degrees
Cutting Depth
23.1in
