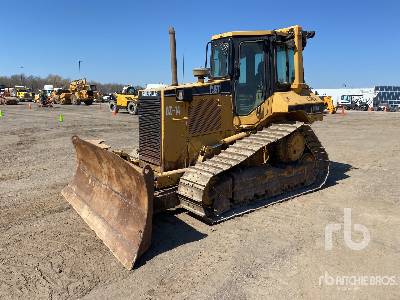

Caterpillar D5M XL Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
14.95ft in
B
Width Over Tracks
7.65ft in
C
Height To Top Of Cab
9.85ft in
D
Length Of Track On Ground
7.84ft in
E
Ground Clearance
1.27ft in
F
Length W/O Blade
11.63ft in
Undercarriage
G
Track Gauge
5.81ft in
H
Standard Shoe Size
22.05in
Number Of Shoes Per Side
41
Ground Pressure
6.22psi
Ground Contact Area
4146in2
Number Of Track Rollers Per Side
7
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
3116T
Gross Power
121hp
Net Power
110hp
Power Measured @
2100rpm
Displacement
402.8cu in
Aspiration
Turbocharged
Operational
Operating Weight
25794.1lb
Fuel Capacity
57.6gal
Cooling System Fluid Capacity
12.2gal
Engine Oil Capacity
6.9gal
Hydraulic Fluid Capacity
8.5gal
Powertrain Fluid Capacity
27.8gal
Final Drives Fluid Capacity
1.6gal
Operating Voltage
24V
Alternator Supplied Amperage
70amps
Transmission
Transmission Type
Power Shift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
6.2mph
Max Speed - Reverse
7.5mph
Hydraulic System
Pump Type
Piston
Relief Valve Pressure
3000psi
Pump Flow Capacity
25gal/min
Standard Blade
Width
10.1ft in
Height
43.7in
Capacity
3.4yd3
Cutting Depth
17.4in
