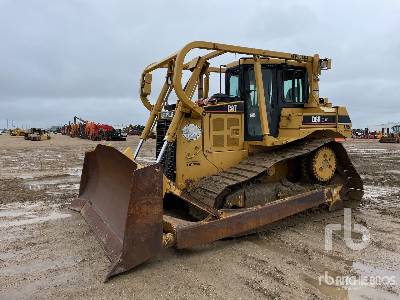

Caterpillar D6R Series 3 Crawler Tractor
Dimensions
Blades
Xw Su - Blade Width
11.67ft in
A-Blade Width
13.67ft in
Blade Type
A
Lgp S-Blade Capacity
4.91yd3
Lgp S-Blade Width
13.33ft in
Lgp Vpat - Blade Capacity
5.65yd3
Lgp Vpat - Blade Width
13.65ft in
S-Blade Capacity
5.09yd3
S-Blade Width
11.02ft in
Su - Blade Capacity
7.34yd3
Su - Blade Width
10.7ft in
Xl Vpat - Blade Capacity
6.19yd3
Xl Vpat - Blade Width
12.73ft in
Xw A - Blade Capacity
5.62yd3
Xw A - Blade Width
13.78ft in
Xw Su - Blade Capacity
7.35yd3
A-Blade Capacity
5.14yd3
Dimensions
Ground Clearance
1.25ft in
Track Gauge
6.17ft in
Width - Without Blade
103.94in
Drawbar Height (Center Of Clevis) From Ground Face Of Shoes
22.68in
Overall Length - Basic Tractor - With Drawbar
12.66ft in
Height - Rops/Canopy
10.48ft in
Length - Track On Ground
104.88in
Height
10.31ft in
Width - With Blade
132in
Undercarriage
Track Gauge
6.67ft in
Ground Clearance
1.25ft in
Track Gauge - Lgp
90in
Track On Ground - Lgp
128.94in
Track On Ground
113.03in
Pitch
7.99in
Width - Shoe
29.92in
Width - Shoe - Lgp
36.03in
Shoes/Side
41
Shoes/Side - Lgp
45
Ground Contact Area
6758.01 in
Ground Contact Area - Lgp
9284.52in2
Ground Pressure
6.72psi
Ground Pressure - Lgp
5.15 psi
Grouser Height
2.56in
Specifications
Ripper
Beam Cross Section
216 x 254 mm 8.5 x 10 in
Number Of Pockets
3
Ripper Type
Fixed Parallelogram
Overall Beam Width
87in
Weight - Each Additional Shank
163lb
Maximum Penetration
19.7in
Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole
20.1in
Pry-Out Force
20137lb
Weight - With One Shank
3606lb
Maximum Penetration Force
14557lb
Engine
Gross Power
213hp
Displacement
537cu in
Bore
4.4in
Stroke
5.9in
Net Power - Iso 9249
185hp
Net Power - Sae J1349
183hp
Engine Model
Cat C9 ACERT
Flywheel Power
185hp
Net Power - Din 70020
192 PS
Net Power - Caterpillar
185hp
Net Power - Eu 80/1269
185hp
Operational
Operating Weight
41159lb
Transmission
1.0 Forward
2.3mph
2.0 Forward
4.1mph
3.0 Forward
7.1mph
1.0 Reverse
3mph
2.0 Reverse
5.2mph
3.0 Reverse
9.1mph
Drawbar Pull - 2.0 Forward
42000lb
Drawbar Pull - 3.0 Forward
23000lb
Drawbar Pull - 1.0 Forward
77000lb
Weights
Shipping Weight
32426lb
Operating Weight - Xl A
44645lb
Shipping Weight - Xl A
36824lb
Operating Weight - Xl Su
44270lb
Shipping Weight - Xl Su
36824lb
Operating Weight - Xw A
46553lb
Shipping Weight - Xw A
38281lb
Operating Weight - Xw Su
45573lb
Shipping Weight - Xw Su
38281lb
Operating Weight - Lgp S
47874lb
Shipping Weight - Lgp S
41551lb
Shipping Weight - Std A
32426lb
Shipping Weight - Std Su
32426lb
Operating Weight - Std Su
40400lb
Operating Weight - Std A
41148lb
Service Refill Capacities
Cooling System
18.5gal
Fuel Tank
112gal
Final Drive - Each
3.6gal
Hydraulic Tank
13.6gal
Engine Crankcase
7.4gal
Power Train
38.5gal
Pivot Shaft Compartment
1.3gal
Roller Frames - Each
6.5gal
Standards
Brakes
Brakes meet criterion SAE J/ISO 10265 MAR99
Rops/Fops
ROPS meets criteria SAE J395, SAE 1040 MAY 94, ISO 3471-1994/FOPS meets ISO 3449-1992 Level II
Cab
Meets appropriate standards as listed below.
Hydraulic Controls - Main Relief Valve
Pressure Setting
6092 psi
Hydraulic Controls - Maximum Operating Pressure
Bulldozer
2799 psi
Tilt Cylinder
2799 psi
Ripper - Pitch
2799 psi
Ripper - Lift
2799 psi
Steering
5802 psi
Bulldozer - Tilt
2799 psi
Hydraulic Controls - Pump
Lift Cylinder Flow
50.2 gal/min
Ripper Cylinder Flow
42.3 gal/min
Tilt Cylinder Flow
21.1 gal/min
Pump Capacity
1001 psi
Rpm At Rated Engine Speed
2125rpm
Pump Output
57.3 gal/min
Winch
Flange Diameter
19.8in
Oil Capacity
17.8gal
Winch Model
PA 56
Winch And Bracket Length
47.6in
Drum Capacity - 22 Mm (0.88 In)
290ft in
Drum Diameter
10in
Drum Width
13in
Winch Case - Width
38.4in
Weight*
2600lb
Increased Tractor Length - Std
20.4in
Increased Tractor Length - Lgp
15.6in
Drum Capacity - 29 Mm (1.13 In)
220ft in
Ferrule Size (O.D. Length)
54 x 67 mm 2.10 x 2.63 in
Increased Tractor Length - Xl/Xw
20.4in
Drum Capacity - 25 Mm (1.0 In)
220ft in
Winch Case - Length
47.6in
Engine - Xl/Xw/Lgp
Gross Power
228hp
Net Power - Caterpillar
200hp
Net Power - Iso 9249
200hp
Net Power - Eu 80/1269
200hp
Net Power - Sae J1349
198hp
Bore
4.4in
Stroke
5.9in
Displacement
537cu in
Net Power - Din 70020
207 PS
Engine Model
Cat C9 ACERT
