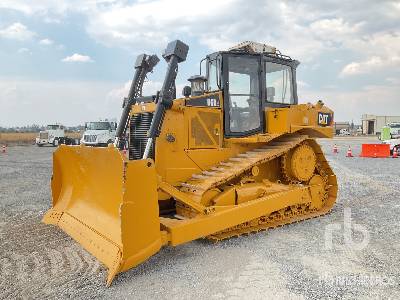

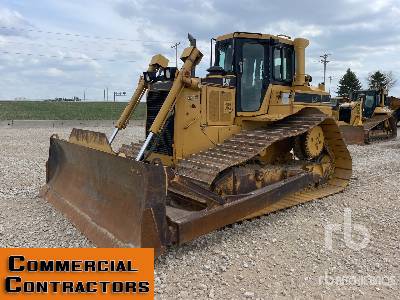

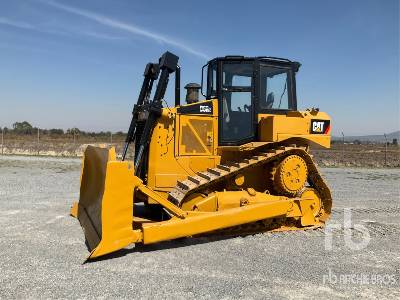

Caterpillar D6R WHA Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
16.77ft in
B
Width Over Tracks
8.67ft in
C
Height To Top Of Cab
10.24ft in
D
Length Of Track On Ground
8.6ft in
E
Ground Clearance
1.24ft in
Undercarriage
G
Track Gauge
6.17ft in
H
Standard Shoe Size
22.05in
Number Of Track Rollers Per Side
6
Ground Contact Area
4557.01in2
Specifications
Engine
Engine Make
2236
Engine Model
3306
Gross Power
165hp
Displacement
640.8cu in
Operational
Operating Weight
45415.3lb
Fuel Capacity
102.5gal
Standard Blade
Width
11ft in
Height
734.7in
Capacity
11.3yd3
Cutting Depth
18.7in
