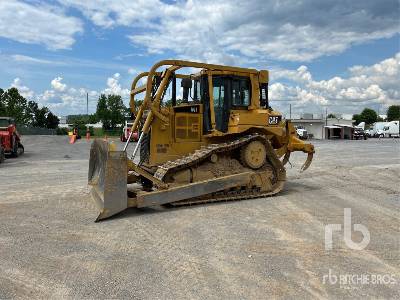

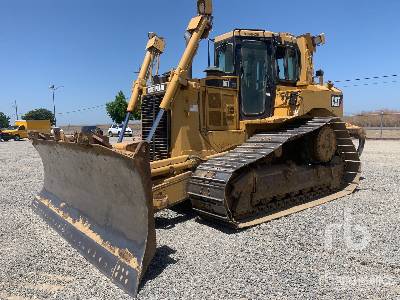

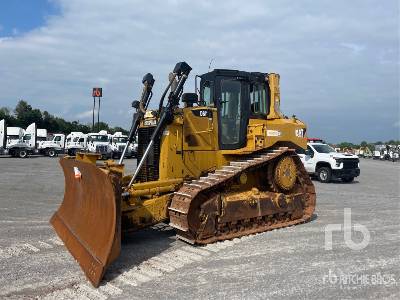

Caterpillar D6T Crawler Tractor
Dimensions
Blades
Blade Type
N/A
Dimensions
Drawbar Height (Center Of Clevis) From Ground Face Of Shoes
23in
Length - Track On Ground
113.1in
Undercarriage
Ground Pressure
9.36psi
Grouser Height
2.6in
Specifications
Ripper
Beam Cross Section
216 254 mm 8.5 10 in
Number Of Pockets
3
Ripper Type
Fixed Parallelogram
Overall Beam Width
87in
Weight - Each Additional Shank
163lb
Maximum Penetration
19.7in
Maximum Clearance Raised - Under Tip, Pinned In Bottom Hole
20.1in
Pry-Out Force
20137lb
Weight - With One Shank
3606lb
Maximum Penetration Force
14557lb
Engine
Gross Power
213hp
Displacement
537cu in
Bore
4.4in
Stroke
5.9in
Net Power - Iso 9249
185hp
Net Power - Sae J1349
183hp
Engine Model
Cat C9 ACERT
Flywheel Power
200hp
Gross Power - Iso 14396
220hp
Net Power - Din 70020
192 PS
Net Power - Caterpillar
185hp
Net Power - Eu 80/1269
185hp
Operational
Operating Weight
44418lb
Transmission
2.0 Forward
3.2mph
3.0 Forward
5.3mph
2.0 Reverse
4.1mph
3.0 Reverse
6.8mph
1.5 Forward
2.4mph
2.5 Forward
4.1mph
1.5 Reverse
3mph
2.5 Reverse
5.3mph
3.5 Forward
7.2mph
3.5 Reverse
9.1mph
Weights
Shipping Weight
36974lb
Operating Weight - Xl A
44795lb
Shipping Weight - Xl A
37589lb
Operating Weight - Xl Su
45082lb
Shipping Weight - Xl Su
37589lb
Operating Weight - Xw A
47576lb
Shipping Weight - Xw A
39174lb
Operating Weight - Xw Su
46961lb
Shipping Weight - Xw Su
39174lb
Operating Weight - Xw Vpat
52031lb
Shipping Weight - Xw Vpat
39591lb
Operating Weight - Lgp S
48588lb
Shipping Weight - Lgp S
41471lb
Operating Weight - Lgp Vpat
53178lb
Shipping Weight - Lgp Vpat
40783lb
Shipping Weight - Lgp A
41471lb
Operating Weight - Lgp A
50869lb
Shipping Weight - Std A
35860lb
Shipping Weight - Std Su
42834lb
Operating Weight - Xl Vpat
51041lb
Shipping Weight - Xl Vpat
38865lb
Service Refill Capacities
Cooling System
20.3gal
Fuel Tank
112gal
Final Drive - Each
3.6gal
Hydraulic Tank
13.6gal
Engine Crankcase
7.4gal
Power Train
38.5gal
Pivot Shaft Compartment
1.3gal
Roller Frames - Each
6.5gal
Standards
Brakes
Brakes meet criterion SAE J/ISO 10265 MAR99
Rops/Fops
ROPS meets criteria SAE J395, SAE 1040 MAY 94, ISO 3471-1994/FOPS meets ISO 3449-1992 Level II
Cab
Meets appropriate standards as listed below.
Hydraulic Controls - Main Relief Valve
Pressure Setting - Steering
6048 psi
Pressure Setting - Implement - Non-Vpat
3147 psi
Pressure Setting - Implement - Vpat
3545 psi
Hydraulic Controls - Pump
Lift Cylinder Flow
49.9 gal/min
Ripper Cylinder Flow
49.9 gal/min
Pump Output - Steering
47.3 gal/min
Pump Output - Implement
49.9 gal/min
Tilt Cylinder Flow
21.1 gal/min
Rpm At Rated Engine Speed - Steering
2625rpm
Angle Cylinder Flow - Vpat
44.9 gal/min
Rpm At Rated Engine Speed - Implement
1965rpm
Winch
Flange Diameter
19.8in
Oil Capacity
17.8gal
Winch And Bracket Length
47.6in
Drum Capacity - 22 Mm (0.88 In)
290ft in
Drum Diameter
10in
Drum Width
13in
Winch Case - Width
38.4in
Increased Tractor Length - Std
20.4in
Maximum Bare Drum - Line Pull
89800lb
Increased Tractor Length - Lgp
15.6in
Drum Capacity - 29 Mm (1.13 In)
220ft in
Ferrule Size (O.D. Length)
54 67 mm 2.10 2.63 in
Increased Tractor Length - Xl/Xw
20.4in
Drum Capacity - 25 Mm (1.0 In)
220ft in
Weight
2600lb
Rated Bare Drum Line Pull (2)
59100lb
Rated Bare Drum Line Pull (1)
70000lb
Winch Model (1)
PA56 Optional Gearing
Recommended Rope (22mm/ 0.88in)
180ft in
Optional Rope (25mm/1.0 In)
163ft in
Oil Refill Capacity
17.8gal
Winch Case - Length
47.6in
Winch Model (2)
PA56
Engine - Std
Gross Power - Sae J1995
213hp
Gross Power - Iso 14396
204hp
Net Power - Sae J1349
185hp
Net Power - 80/1269/Eec
185hp
Bore
4.4in
Displacement
537cu in
Engine Emissions
U.S. EPA Tier 3/EUStage IIIA/MLITStep 3
Engine Model
Cat C9 ACERT
Net Power - Iso 9249
185hp
Stroke
5.9in
Engine - Xl/Lgp
Gross Power - Sae J1995
228hp
Gross Power - Iso 14396
219hp
Net Power - Sae J1349
200hp
Net Power - 80/1269/Eec
200hp
Engine Model
Cat C9 ACERT
Engine Emissions
U.S. EPA Tier 3/EUStage IIIA/MLITStep 3
Bore
4.4in
Stroke
5.9in
Displacement
537cu in
Net Power - Iso 9249
200hp
Engine - Xl/Xw/Lgp
Gross Power
228hp
Net Power - Caterpillar
200hp
Net Power - Iso 9249
200hp
Net Power - Eu 80/1269
200hp
Net Power - Sae J1349
198hp
Bore
4.4in
Stroke
5.9in
Displacement
537cu in
Net Power - Din 70020
207 PS
Gross Power - Iso 14396
220hp
Hydraulic Controls - Maximum Operating Pressure (Non-Vpat)
Bulldozer - Tilt
2799 psi
Bulldozer - Lift
2799 psi
Ripper
2799 psi
Hydraulic Controls - Maximum Operating Pressure (Vpat)
Bulldozer - Angle
3126 psi
Ripper
2799 psi
Bulldozer - Lift
3126 psi
Bulldozer - Tilt
3126 psi
