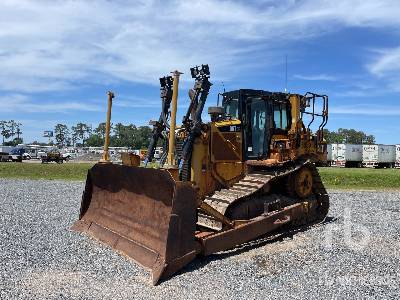

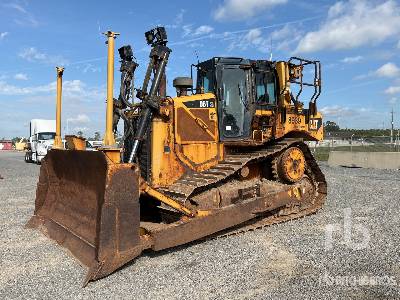

Caterpillar D6T XL Crawler Tractor
Units
Dimensions
Dimensions
B
Width Over Tracks
8ft in
C
Height To Top Of Cab
10.5ft in
D
Length Of Track On Ground
9.42ft in
E
Ground Clearance
1.25ft in
F
Length W/O Blade
12.67ft in
Undercarriage
H
Standard Shoe Size
22in
Ground Pressure
8.9psi
Track Pitch
8in
Ground Contact Area
4972in2
Number Of Track Rollers Per Side
7
Number Of Shoes Per Side
41
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C9 ACERT
Gross Power
228hp
Net Power
199.9hp
Power Measured @
1850rpm
Displacement
537cu in
Operational
Operating Weight
44795lb
Fuel Capacity
112gal
Cooling System Fluid Capacity
18.5gal
Engine Oil Capacity
7.4gal
Hydraulic Fluid Capacity
13.6gal
Powertrain Fluid Capacity
38.5gal
Final Drives Fluid Capacity
3.6gal
Operating Voltage
24V
Alternator Supplied Amperage
95amps
Transmission
Transmission Type
Powershift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
7.2mph
Max Speed - Reverse
9.1mph
Hydraulic System
Relief Valve Pressure
2799psi
Pump Flow Capacity
49.9gal/min
Standard Blade
Width
13.7ft in
Height
45in
Capacity
5.2yd3
Cutting Depth
21in
