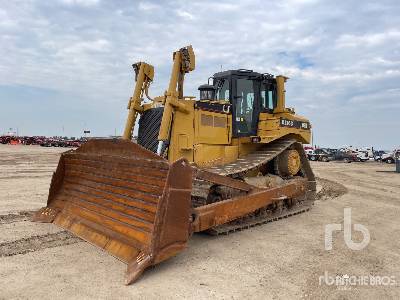

Caterpillar D8R WHA Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
20.97ft in
B
Width Over Tracks
8.86ft in
C
Height To Top Of Cab
8.76ft in
D
Length Of Track On Ground
10.54ft in
E
Ground Clearance
1.92ft in
F
Length W/O Blade
16.18ft in
Undercarriage
G
Track Gauge
6.83ft in
H
Standard Shoe Size
22.05in
Ground Contact Area
5549.02in2
Number Of Track Rollers Per Side
8
Ground Pressure
14.67psi
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
3406ETA
Gross Power
305hp
Power Measured @
2100rpm
Displacement
891cu in
Operational
Operating Weight
82880.6lb
Fuel Capacity
165.2gal
Transmission
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
6.6mph
Max Speed - Reverse
8.6mph
Standard Blade
Width
13ft in
Height
97.1in
Capacity
26.2yd3
Cutting Depth
23in
