Caterpillar D9N Crawler Tractor
Units
Dimensions
Dimensions
A
Length W/ Blade
22.54ft in
B
Width Over Tracks
9.49ft in
C
Height To Top Of Cab
12.83ft in
D
Length Of Track On Ground
11.39ft in
E
Ground Clearance
1.66ft in
F
Length W/O Blade
16.97ft in
Undercarriage
G
Track Gauge
7.39ft in
H
Standard Shoe Size
24.02in
Ground Contact Area
6572.02in2
Number Of Track Rollers Per Side
8
Ground Pressure
14.28psi
Specifications
Engine
Engine Make
2236
Engine Model
3408
Gross Power
370hp
Displacement
1098.5cu in
Operational
Operating Weight
93789.1lb
Fuel Capacity
209.3gal
Hydraulic Fluid Capacity
23.6gal
Transmission
Transmission Type
powershift
Number Of Forward Gears
3
Number Of Reverse Gears
3
Max Speed - Forward
7.6mph
Max Speed - Reverse
9.3mph
Hydraulic System
Relief Valve Pressure
2700psi
Pump Flow Capacity
81.9gal/min

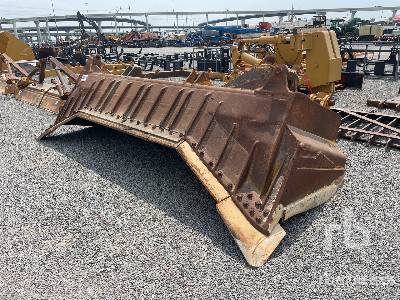

Standard Blade
Width
14.2ft in
Height
71.3in
Capacity
15.6yd3
Cutting Depth
24.4in
